2Mva Step Up Pad Mount Three Phase Transformer Electrical 600V To 13200V

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: S-2000/15
Minimum Order Quantity: 1unit
Price: $5000-$150000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Phase: Three Phase Capacity: 2000KVA
Primary Voltage: 600Y/347 Or Customized Secondary Voltage: 13200GrdY/7620 Or Customized
Transformer Type: Pad Mounted Temperature Rise: 65°C
Impedance (Typical): 5.75% Cooling Class: KNAN/ONAN
High Light:

2Mva Step Up 3Phase Transformer


Electrical Three Phase Transformer 600V


3Phase Electrical Transformer 13200V

Product Description

2Mva 2000Kva Step Up Pad Mount three Phase Transformer Electrical 600V To 13200V



Product structure

1)The transformer part and the control cabinet part of the United States variation, of which the transformer part is a fully sealed structure, and the insulating oil can be two types of high ignition point oil or ordinary oil.
2)The control cabinet is divided into a high-voltage room and a low-voltage room.
3)The high-voltage room is equipped with: high-voltage cable plug, lightning arrester, load switch operating handle, non-excitation tap switch handle, plug-in fuse, pressure release valve, thermometer, pressure gauge, oil Position gauges, oil filling plugs, oil drain valves, etc., load switches, off-excitation tap changers, plug-in fuses, etc. are all immersed in transformer oil together with the transformer core. The high-voltage cable and the transformer are connected by elbow cable connectors.
4)The low-voltage side can be installed with air circuit breakers, current transformers, as well as electric energy meters, ammeters and voltmeters, and output circuits and capacitance compensation devices can be configured according to user needs.

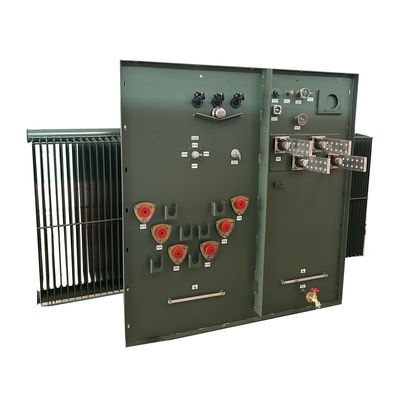

2Mva Step Up Pad Mount Three Phase Transformer Electrical 600V To 13200V 0

Main data


Transformer Type Pad Mounted, Compartmental-Type
Transformer Configuration Liquid Filled Pad Mounted
Transformer Feed Type Loop Feed
Operation Step-Up Operation
Phase Three Phase
Capacity 2 MVA (2000 KVA)
Vector Group YnD1
Primary Voltage 600Y/347
Primary Voltage Class 1.2 kV Class
Primary Phasor Wye-N
Primary BIL 30 KV
Secondary Voltage 13200GrdY/7620
Secondary Voltage Class 15 kV Class
Secondary Phasor Grounded Wye
Secondary BIL 95 KV
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class KNAN; Self-Cooled
Impedance (Typical) 5.0-7.5%
Primary Connection Type Live Front
Secondary Connection Type Dead Front
Load Break Switch Rating 200-Amp, 15 kV
Load Break Switch Location High Voltage (HV) Front Compartment
Efficiency Standard(s) Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation) K-1 (Standard)
Pulse Drive Rating N/A
Insulation Fluid Biodegradable Natural Vegetable Oil Ester Insulating Fluid - Non-PCB Fluid
Winding Material Copper
Ambient Temperature Rating 40°C
Sound Level 61 dBA
Elevation Rating 3300ft (1000 meters) Above Sea Level
Core Material Grain Oriented Steel
Tank Material Coated Steel
Dimensions/ 75''-W x 74''-D x 73''-H
Dry Weight (w/o Oil)* 4,566 lb
Total Weight (Liquid Filled)* 10,567 lb
Efficiency % 99.40%
No Load Loss (in watts)) +/- 2,100W
Full Load Loss (in watts) at 100% +/- 14,500W

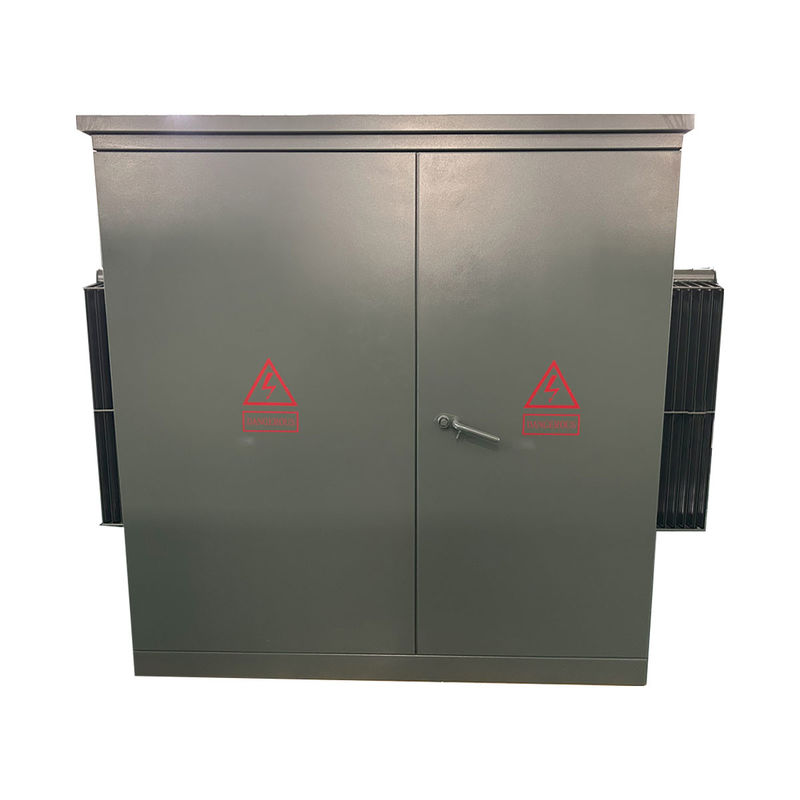

Factory photos

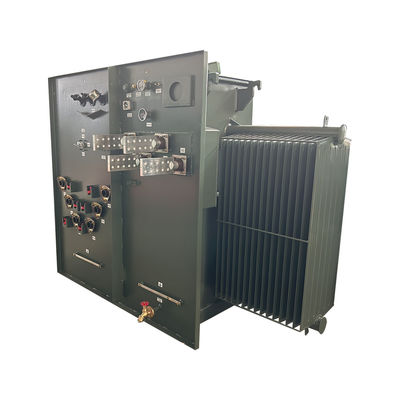

2Mva Step Up Pad Mount Three Phase Transformer Electrical 600V To 13200V 1




Three Phase Pad Mounted Transformer
Rated Power (KVA) High Voltage (KV) Low Voltage (V) Loss (W)
No-load Loss (W) On-load Loss (W)
75KVA 24.94/14.4kV
or others
180 1250
112.5KVA 200 1500
150KVA 280 2200
225KVA 400 3050
300KVA 480 3650
500KVA 680 5100
750KVA 980 7500
1000KVA 1150 10300
1500KVA 1640 14500
2000KVA 2160 20645
2500KVA 2680 23786
3000KVA 3300 25300
3750KVA 4125 27875
5000KVA 5200 30000


Technical drawings

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 3
