500kva Three Phase Pad Mounted Transformer Step Down 12470v To 208v

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: S-500/15
Minimum Order Quantity: 1unit
Price: $5000-$150000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Phase: Three Phase Rated Capacity: 75KVA-50000KVA
Primary Voltage: 12470GrdY/7200 Secondary Voltage: 208Y/120
Frequency: 50 / 60 Hz Cooling Class: KNAN; Self-Cooled
Winding Material: Copper\Aluminum Material: Silicon Steel Sheet
High Light:

12470v Pad Mounted Transformer


Step Down Pad Mounted Transformer


500kva Three Phase Transformer

Product Description

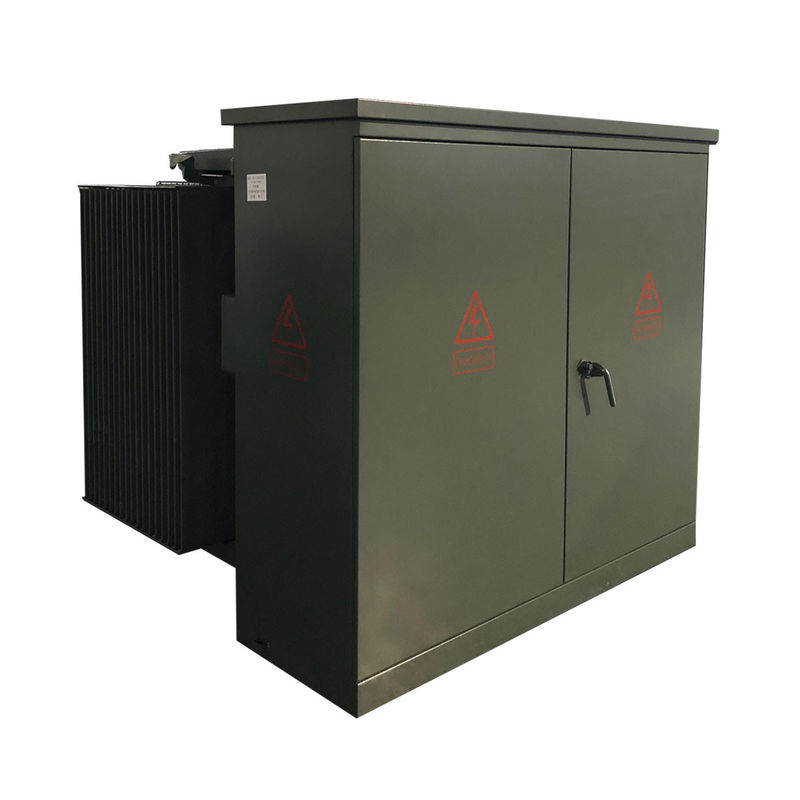

500kva Three Phase Pad Mounted Transformer Step Down 12470v To 208v





The three phase pad mounted transformer immerses the load switch and fuse on the high voltage side of the transformer with the core and windings of the transformer in the same oil tank, has the advantages of advanced structure, reliable performance, energy saving and consumption reduction, flexible use, strong adaptability, and economical advantages.



We can make this substion as user and customers requirement under their drawing/single line diagram (SLD) and need .We design & produce this substation under the international standard of IEC1330 ,H.V.standard IEC62271-200.HV & LV compartment is with completed function.

1.)H.V.compartment has various of power supply methods when testing power supply in 1 time, it also can be installed with H.V.testing appliances to reach the demand of H.V.testing.
2.)The transformer compartment can be choosed S11,S13 or other low consumption oil immersed transformer and dry type transformer. The transformer compartment has automatic start wind cooling systems and lighting systems.
3.)Low voltage compartment can be made according to users' need , it adopts fixed or assembled structure to be electrical power supply system,it has many function like light distribution ,power distribution, reactive power ,electrical power testing..etc to improve the power distribution quality and satisfy the user.


500kva Three Phase Pad Mounted Transformer Step Down 12470v To 208v 0

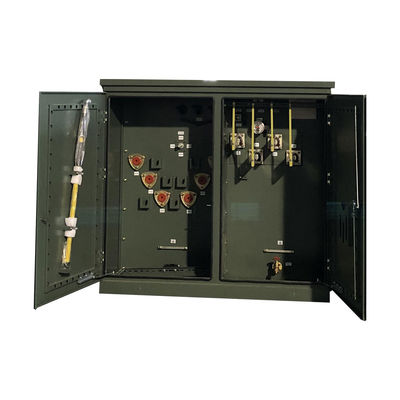

Standard Feature


1.Primary Switching
1)5-position tap changer.
2)4 position load break switch,Can be operated a hot stick and allows for flexibility in repair and maintenance.
2.termination connection
1)Primary power cables are connected with elbow connectors.
2)Externally clamped bushing wells with loadbreak inserts.
3)Integral loadbreak or non-loadbreak bushings.
4)Secondary termination Externally clamped bushings with NEMA 4-hole, 6-hole.8-hole,10-hole or 12-hole spades , Spade supports are available.
3.protective device
1) Bayonet fuses partial-range current-limiting fuses.
2) Automatic action pressure relief device.
3) Oil level gauge.
4) Oil temperature gauge.
5) Pressure vacuum gauge.
6) Drain valve with sampler.
7)Distribution class, metal oxide arresters, 3-36 kV.
8)Distribution class, valve-type lightning arresters,3-27 kV.


Technical drawings


150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 3




Rated Capacity Loss(w) Dimension(mm) Weight(kg)
No-load Loss(W) On-load Loss W D H Oil Weight (L) Total Weight (KG)
45kVA 160 1000 1730 990 1270 416 950
75kVA 180 1250 1730 990 1270 435 1020
150kVA 280 2200 1730 1245 1270 473 1225
300kVA 480 3650 1830 1295 1270 605 1655
500kVA 680 5100 2260 1345 1270 720 2110
750kVA 980 7500 2260 1448 1628 1022 2950
1000kVA 1150 10300 2260 1500 1625 1325 3720
1500kVA 1640 14500 2210 1470 2150 1552 4672
2000kVA 2160 20645 2380 1600 2220 1855 5670
2500kVA 2680 27786 3070 1650 2330 2006 6580
3000kVA 3300 30300 3260 1850 2460 2336 7500
3750kVA 4125 37875 4080 2060 2680 2650 8450


Production process


150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 4

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 5

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 6




1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
