Three Phase Electrical Pad Mounted Step Down Oil Immersed Transformer 1000kva 15kv

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: S-1000/15
Minimum Order Quantity: 1unit
Price: $5000-$150000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Transformer Type: Pad Mounted, Compartmental-Type Capacity: 1 MVA (1000 KVA)
Primary Voltage: 12470GrdY/7200 Secondary Voltage: 208Y/120
Frequency: 60 Hz Cooling Class: KNAN; Self-Cooled
Impedance (Typical): 5.75% Efficiency: 99.20%
High Light:

Step Down Oil Immersed Transformer


Pad Mounted Transformer 1000kva


Oil Immersed Transformer 15kv

Product Description

Three Phase Electrical Pad Mounted Step Down Oil Immersed Transformer 1000kva 15kv





WINLEY offers a complete line of liquid-filled ThreePhase Pad-Mounted distribution transformers that meet applicable ANSI®/IEEE® standards.With high voltages up to 34.5 kV and ratings up to 5,000 kVA, It is suitable for high-voltage and large-capacity occasions, such as power substations, industrial power consumption, etc. In high-load, high-voltage scenarios, oil-immersed transformers have better performance and stability.

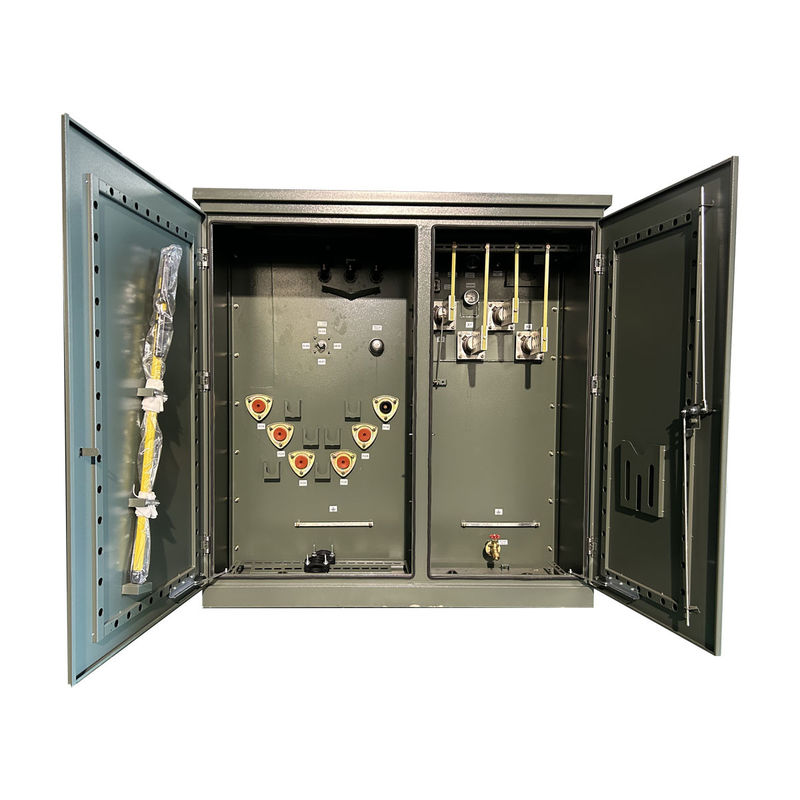

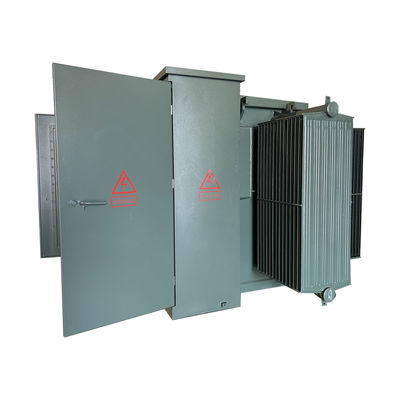

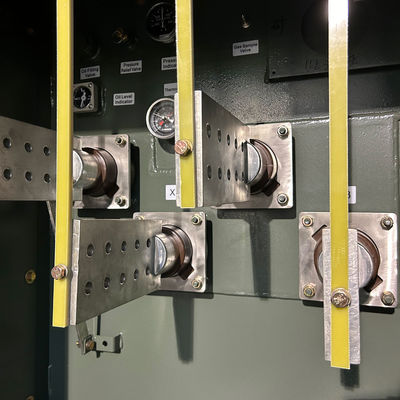

Three Phase Electrical Pad Mounted Step Down Oil Immersed Transformer 1000kva 15kv 0




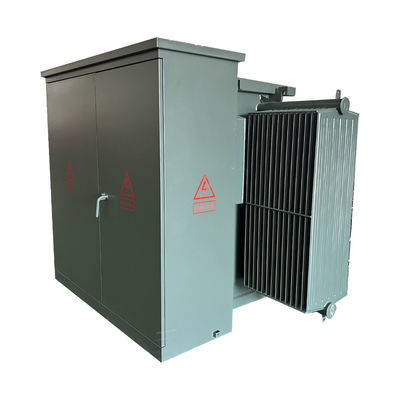

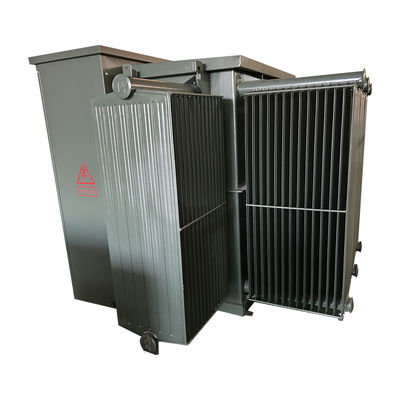

1) The structure is compact and reasonable, and the volume is small, which is only about one-third of the European-style box change of the same capacity;
2) Fully sealed, fully insulated structure, no need to set up safety barriers, and reliable guarantee for personal safety;
3) There are a variety of power supply schemes for users to choose from, which can adopt terminal power supply and realize ring network or dual power supply;
4) S11 oil-immersed power transformer is adopted, which has low loss, low temperature rise and strong overload capacity;
5) Double fuses (backup protection fuse + plug-in fuse) are used for protection, and the plug-in fuse fuse has the current and temperature dual sensitivity characteristics to ensure the safe and reliable operation of the product;


Main data


Transformer Type Pad Mounted, Compartmental-Type
Transformer Configuration Liquid Filled Pad Mounted
Transformer Feed Type Loop Feed
Phase Three Phase
Capacity 1 MVA (1000 KVA)
Primary Voltage 12470GrdY/7200
Primary Voltage Class 15 kV Class
Primary Phasor Grounded Wye
Primary BIL 95 KV
Secondary Voltage 208Y/120
Secondary Voltage Class 1.2 kV Class
Secondary BIL 30 KV
Frequency 60 Hz
Temperature Rise 65°C
Cooling Class KNAN; Self-Cooled
Tap Changer 5-position Tap Changer
Impedance (Typical) 5.75%
Winding Material Copper
Ambient Temperature Rating 40°C
Sound Level 58 dBA
Elevation Rating 3300ft (1000 meters) Above Sea Level
Dimensions 89''-W x 59''-D x 64''-H
Weight 8200 lb
Ratings Meets/Exceeds DOE 2016 Efficiency Ratings
Efficiency % 99.20%
No Load Loss (in watts)) +/- 1,300W
Full Load Loss (in watts) at 100% +/- 8,500W


Standard Features

Pad-mounted transformers are made in power ratings from around 75 to around 5000 kVA and often include built-in fuses and
switches. Primary power cables are connected with elbow connectors, which can be operated when energized using a hot stick and
allows for flexibility in repair and maintenance.
Our pad mounted transformer is designde and tested in accordance with industry standards including CSA,ANSI C.57,DOE,and IEEE as applicable.


Technical drawings


150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 3




Rated Capacity Loss(w) Dimension(mm) Weight(kg)
No-load Loss(W) On-load Loss W D H Oil Weight (L) Total Weight (KG)
45kVA 160 1000 1730 990 1270 416 950
75kVA 180 1250 1730 990 1270 435 1020
150kVA 280 2200 1730 1245 1270 473 1225
300kVA 480 3650 1830 1295 1270 605 1655
500kVA 680 5100 2260 1345 1270 720 2110
750kVA 980 7500 2260 1448 1628 1022 2950
1000kVA 1150 10300 2260 1500 1625 1325 3720
1500kVA 1640 14500 2210 1470 2150 1552 4672
2000kVA 2160 20645 2380 1600 2220 1855 5670
2500kVA 2680 27786 3070 1650 2330 2006 6580
3000kVA 3300 30300 3260 1850 2460 2336 7500
3750kVA 4125 37875 4080 2060 2680 2650 8450


Production process


150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 4

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 5

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 6




1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
