| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | CE,ISO |
| Model Number: | S-500/15 |
| Minimum Order Quantity: | 1unit |
| Price: | $5000-$150000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Phase: | Three Phase | Capacity: | 500KVA Or Customized |
|---|---|---|---|
| Primary Voltage: | 13800V | Secondary Voltage: | 208Y/120V |
| Efficiency: | ＞99.10% | Temperature Rise: | 65°C |
| Impedance (Typical): | 5.0-7.5% Typical | Cooling Class: | ONAN; Self-Cooled |
| High Light: | 500Kva Pad Mounted Transformer,13800v Pad Mounted Transformer,3Phase Oil Type Transformer |
||

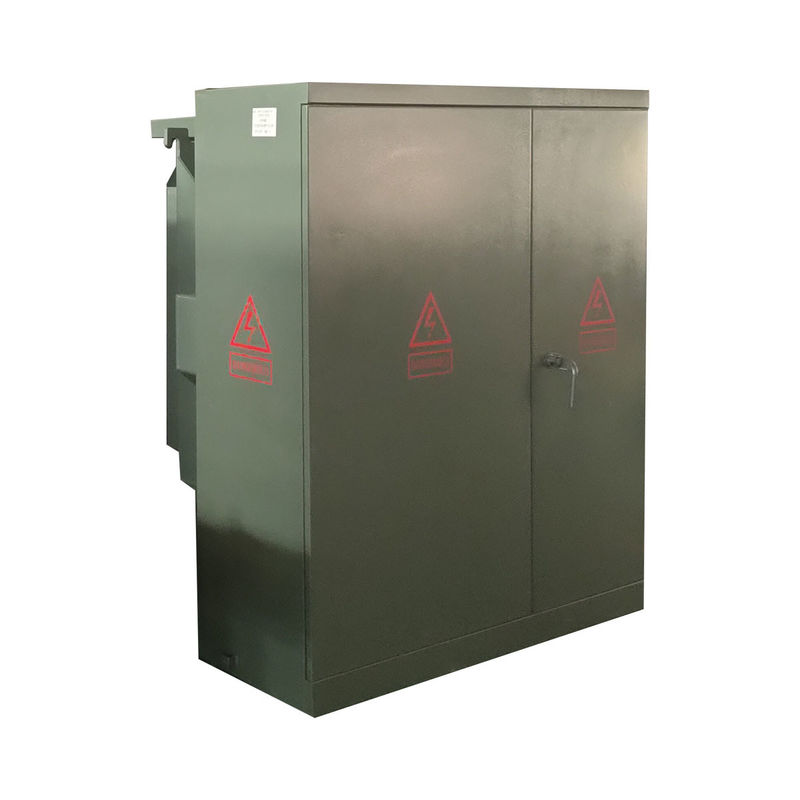

500 Kva 3 Phase Pad Mounted Transformer Oil Type 13800v To 208v
Performance
1. pad-mounted transformers are made in power ratings up to 10000 kVA.High voltage up to 34.5 kV.
2. pad mounted transformer is designde and tested in accordance with standards including CSA, IEEE c.57, and DOE as applicable.

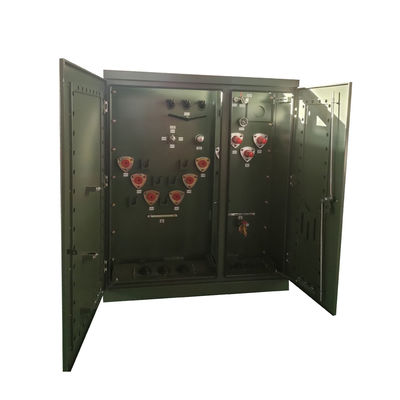

3. The pad mounted transformers are oil-filled and have a tamper-resistant design. The transformer is divided into two parts, the front cabin and the rear cabin.
Main data
| Transformer Type | Pad Mounted, Compartmental-Type |
| Transformer Configuration | Liquid Filled Pad Mounted |
| Transformer Feed Type | Loop Feed |
| Phase | Three Phase |
| Capacity | 500 KVA |
| Vector Group | DYN1 |
| Primary Voltage | 13200V |
| Primary Voltage Class | 15 kV Class |
| Primary Phasor | Delta |
| Primary BIL | 95 KV |
| Secondary Voltage | 208Y/120 |
| Secondary Voltage Class | 1.2 kV Class |
| Secondary Phasor | Wye-N |
| Secondary BIL | 30 KV |
| Frequency | 60 Hz |
| Temperature Rise | 65°C Avgerage w/ 80°C Hot Spot |
| Cooling Class | ONAN; Self-Cooled |
| Impedance (Typical) | 5% |
| Primary Connection Type | Dead Front |
| Winding Material | Copper |
| Core Material | Grain Oriented Steel |
| Efficiency % | 99.10% |
| Full Load Loss (in watts) at 100% | +/- 5,000W |
Factory photos
Technical drawings
Specification
| Three Phase Pad Mounted Transformer | ||||
| Rated Power (KVA) | High Voltage (KV) | Low Voltage (V) | Loss (W) | |
| No-load Loss (W) | On-load Loss (W) | |||
| 75KVA | 24.94/14.4kV 12.47/7.2kV 34.5KV/ 19.92KV/ 13.8KV/ 13.2KV/ or others |
120/240V 480Y/ 277V 600Y/ 347V |
180 | 1250 |
| 112.5KVA | 200 | 1500 | ||
| 150KVA | 280 | 2200 | ||
| 225KVA | 400 | 3050 | ||
| 300KVA | 480 | 3650 | ||
| 500KVA | 680 | 5100 | ||
| 750KVA | 980 | 7500 | ||
| 1000KVA | 1150 | 10300 | ||
| 1500KVA | 1640 | 14500 | ||
| 2000KVA | 2160 | 20645 | ||
| 2500KVA | 2680 | 23786 | ||
| 3000KVA | 3300 | 25300 | ||
| 3750KVA | 4125 | 27875 | ||
| 5000KVA | 5200 | 30000 |
||
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
