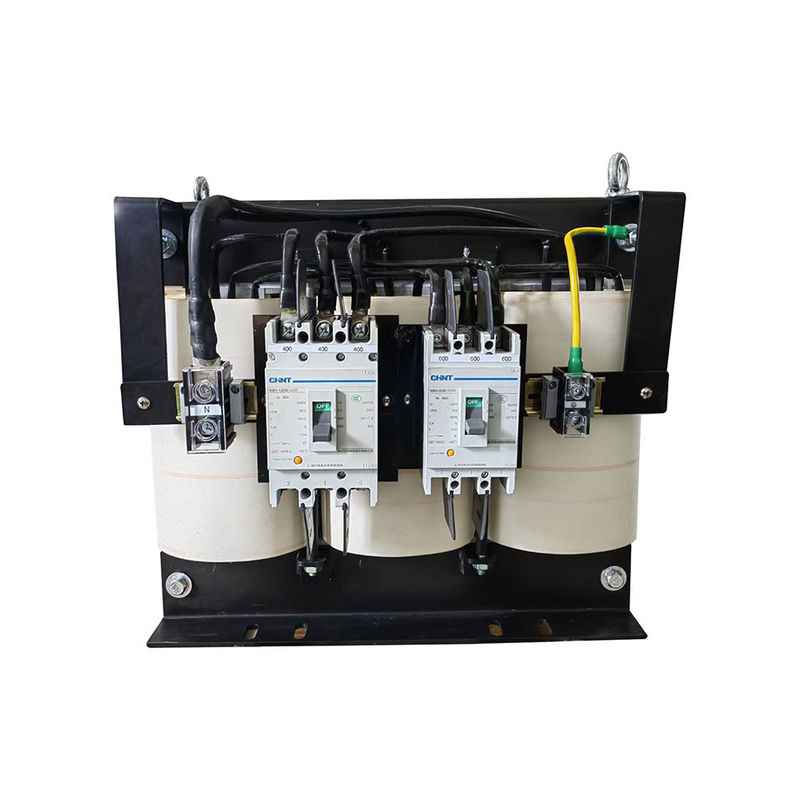

SG 15kva 25kva 30kva 3 Phase Dry Type Isolation Transformer Step Down
Summarization
SG series three-coherent-type transformers are widely used in AC 50~60Hz, input, output voltage not exceedlng 500V three phase power supply in a variety of occasions.
For a variety of input and output voltage lever, Join groups, regulating the number and location of laps(typically±5%), winding capacity allocation, single-phase secondary winding is equipped with, the use of rectiffer cirouits, take shell or not, etc.
According to the user's demands, product can be meticulous designed and produced.
main data
| Model Number | SG-30KVA |
| Capacity | 0.1KVA-2500KVA |
| Input Voltage | 380V (can be customized) |
| Output Voltage | 415V (can be customized) |
| Connection Type | DYN11/YYN0 |
| Insulation level | 50/60Hz |
| Earth Resistance | F/H |
| Core material | Cold Rolled Silicon Steel Sheet |
| Winding material | Enameled CopperAluminum Wire |
| Advantage | Vacuum Impregnation Insulation |
Specification
| Model (kva) |
Primary Voltage | Secondary Voltage | Coupling group tab | Shape dimension | Mounting dimension | K*J | The box dimension | |||||
| Bmax | Dmax±5 | Emax | A | C±5 | Bmax | Dmax±5 | Emax | |||||
| SG-10KVA | 660 400 380 200 |
380 220 110 36 |
Yyn0 Y/d D/y D/d |
360 | 180 | 305 | 215 | 140 | 10*20 | 450 | 360 | 480 |
| SG-15KVA | 360 | 200 | 335 | 215 | 155 | 10*20 | 450 | 360 | 480 | |||
| SG-20KVA | 420 | 210 | 350 | 250 | 170 | 10*20 | 490 | 400 | 540 | |||
| SG-30KVA | 420 | 230 | 380 | 250 | 190 | 10*20 | 490 | 400 | 540 | |||
| SG-50KVA | 680 | 350 | 550 | 420 | 220 | 10*20 | 800 | 510 | 840 | |||
| SG-80KVA | 750 | 400 | 620 | 480 | 250 | 10*20 | 850 | 510 | 840 | |||
| SG-100KVA | 780 | 420 | 650 | 500 | 250 | 10*20 | 900 | 550 | 890 | |||
| SG-300KVA | 180 | 95 | 185 | 100 | 75 | 6*14 | ||||||
| SG-500KVA | 180 | 95 | 185 | 100 | 75 | 6*14 | ||||||
| SG-1000KVA | 180 | 110 | 185 | 100 | 90 | 6*14 | ||||||
| SG-2000KVA | 230 | 125 | 205 | 130 | 100 | 9*16 | ||||||
| SG-3000KVA | 240 | 145 | 215 | 130 | 120 | 9*16 | ||||||
| SG-4000KVA | 240 | 155 | 235 | 130 | 130 | 9*16 | ||||||
| SG-5000KVA | 320 | 160 | 255 | 180 | 115 | 10*20 | 400 | 330 | 480 | |||
| SG-6000KVA | 300 | 165 | 280 | 180 | 140 | 10*20 | 400 | 330 | 480 | |||
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
|
