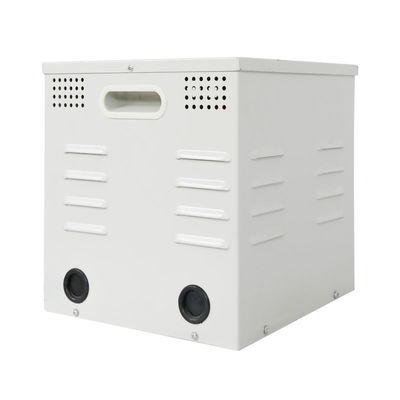

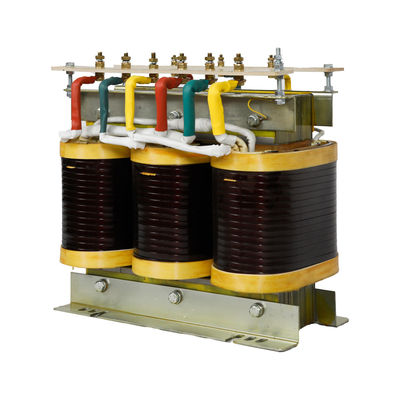

10kva 3 Phase Dry Type Isolation Transformer step up 208V 220V to 380V 400V
Summarization
SG series three-coherent-type transformers are widely used in AC 50~60Hz, input, output voltage not exceedlng 500V three phase power supply in a variety of occasions.For a variety of input and output voltage lever, Join groups, regulating the number and location of laps(typically±5%), winding capacity allocation, single-phase secondary winding is equipped with, the use of rectiffer cirouits, take shell or not, etc.
According to the user's demands, product can be meticulous designed and produced.
main data
| Product Name | Factory direct selling 208V 220V to 380V 400V 440V 480V 3 phase step up transformer 10KVA |
| Product Model | SG/QZB/SBK/Power transformer/ZSG/SBDG/EPS UPS |
| Winding Material | Enameled copper wire or enameled aluminum wire |
| Capacity | 0.1KVA-2500KVA |
| Input Voltage | Customized |
| Output Voltage | Customized |
| Frequency | 50/60Hz |
| Connection Type | DYN11/YYN0 |
| Insulation Level | F/H |
| Enclosures Protection Level | IP20 |
| Pressure-tight Test | Primary to secondary2.5KV/min; |
| Primary to safety ground2.5KV/min; | |
| Secondary to safety ground1.5KV/min | |
| Insulation Resistance | Primary to secondary 2500V>100megohm; |
| Primary to safety ground 2500V>100megohm; | |
| Secondary to safety ground 1500V>100megohm | |
| Ground Resistance | 25A<100milliohm |
| Induction Withstand Voltage Test | 125Hz / 800V / 60s |
| Cooling Method | Natural or air cooling |
| Temperature Rise | ≤125K |
| Transformation Ratio | <3% |
| Air Carrying Current | <3% |
| Impedance Voltage | about 4.5% |
| Total Losses | 4% |
| Efficiency | 80%--99% |
| Operating Temperature | -15℃～40℃ (40℃, 90%R.H., 56days) |
| Storage Temperature | -25℃～100℃(40℃, 90%R.H., 56days) |
| Certificate | CE,ISO |
Specification
| Model (kva) |
Primary Voltage | Secondary Voltage | Coupling group tab | Shape dimension | Mounting dimension | K*J | The box dimension | |||||
| Bmax | Dmax±5 | Emax | A | C±5 | Bmax | Dmax±5 | Emax | |||||
| SG-10KVA | 660 400 380 200 |
380 220 110 36 |
Yyn0 Y/d D/y D/d |
360 | 180 | 305 | 215 | 140 | 10*20 | 450 | 360 | 480 |
| SG-15KVA | 360 | 200 | 335 | 215 | 155 | 10*20 | 450 | 360 | 480 | |||
| SG-20KVA | 420 | 210 | 350 | 250 | 170 | 10*20 | 490 | 400 | 540 | |||
| SG-30KVA | 420 | 230 | 380 | 250 | 190 | 10*20 | 490 | 400 | 540 | |||
| SG-50KVA | 680 | 350 | 550 | 420 | 220 | 10*20 | 800 | 510 | 840 | |||
| SG-80KVA | 750 | 400 | 620 | 480 | 250 | 10*20 | 850 | 510 | 840 | |||
| SG-100KVA | 780 | 420 | 650 | 500 | 250 | 10*20 | 900 | 550 | 890 | |||
| SG-300KVA | 180 | 95 | 185 | 100 | 75 | 6*14 | ||||||
| SG-500KVA | 180 | 95 | 185 | 100 | 75 | 6*14 | ||||||
| SG-1000KVA | 180 | 110 | 185 | 100 | 90 | 6*14 | ||||||
| SG-2000KVA | 230 | 125 | 205 | 130 | 100 | 9*16 | ||||||
| SG-3000KVA | 240 | 145 | 215 | 130 | 120 | 9*16 | ||||||
| SG-4000KVA | 240 | 155 | 235 | 130 | 130 | 9*16 | ||||||
| SG-5000KVA | 320 | 160 | 255 | 180 | 115 | 10*20 | 400 | 330 | 480 | |||
| SG-6000KVA | 300 | 165 | 280 | 180 | 140 | 10*20 | 400 | 330 | 480 | |||
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
|
