| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | CE,ISO |
| Model Number: | SG-100Kva |
| Minimum Order Quantity: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Rated Capacity: | 100VA-1000KVA | Input Voltage: | Customized |
|---|---|---|---|
| Output Voltage: | Customized | Insulation Level: | F/H |
| Frequency: | 50Hz/60Hz | Winding Material: | Copper/Aluminum |
| Efficiency: | >98% | Certification: | CE,ISO |
| High Light: | SG Dry Type Isolation Transformer,440V Dry Type Isolation Transformer,3Phase Step Up Transformer |
||

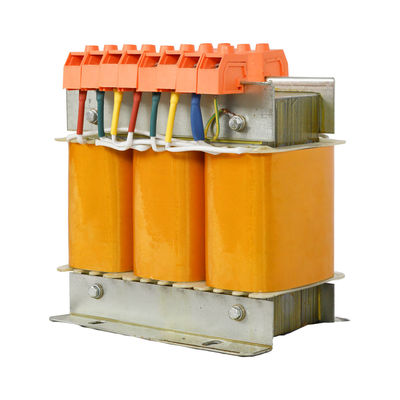

SG 230V 380V 415V 440V 480V 3 Phase Step Up Step Down Dry Type Isolation Transformer
Summarization
Compared with other voltage stabilizers, it has the advantage of large capacity, high efficiency, no wave distortion, stable voltage adjustment, suitability for kinds of loads, bearing instantaneous overload, working continually for long time, as well as free transferring between manual control and automatic control, etc, besides, the three phase voltage stabilizer is provided with protection against over-voltage, over current, phase failure and protection for phase sequence and has following merits: small volume, light weight, convenient installation and reliable running and so on.
Main data
| Model | SG-100 |
| Type | Dry Type |
| Phase | 3 phase |
| Capacity | 100KVA to 1000KVA |
| Primary Voltage | 110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 380V/ 415V/ 480V (or customized) |
| Secondary Voltage | 110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 380V/ 415V/ 480V (or customized) |
| Frequency | 50Hz/60Hz |
| Insulation Level | F/H |
| Winding material | Copper/Aluminum |
| Cooling Method | Natural cooling and wind cooling |
| Operating temperature | -25~+80℃ |
| Certification | ISO,CE |
| Insulation Resistance | ≥5 MΩ |
| Efficiency | >98% |
| Noise | 35-65dB (1 meter) |
Summarization
SG series three-coherent-type transformers are widely used in AC 50~60Hz, input, output voltage not exceedlng 500V three phase power supply in a variety of occasions.
For a variety of input and output voltage lever, Join groups, regulating the number and location of laps(typically±5%), winding capacity allocation, single-phase secondary winding is equipped with, the use of rectiffer cirouits, take shell or not, etc.
According to the user's demands, product can be meticulous designed and produced.
Specification
| Model (kva) |
Primary Voltage | Secondary Voltage | Coupling group tab | Shape dimension | Mounting dimension | K*J | The box dimension | |||||
| Bmax | Dmax±5 | Emax | A | C±5 | Bmax | Dmax±5 | Emax | |||||
| SG-10KVA | 660 400 380 200 |
380 220 110 36 |
Yyn0 Y/d D/y D/d |
360 | 180 | 305 | 215 | 140 | 10*20 | 450 | 360 | 480 |
| SG-15KVA | 360 | 200 | 335 | 215 | 155 | 10*20 | 450 | 360 | 480 | |||
| SG-20KVA | 420 | 210 | 350 | 250 | 170 | 10*20 | 490 | 400 | 540 | |||
| SG-30KVA | 420 | 230 | 380 | 250 | 190 | 10*20 | 490 | 400 | 540 | |||
| SG-50KVA | 680 | 350 | 550 | 420 | 220 | 10*20 | 800 | 510 | 840 | |||
| SG-80KVA | 750 | 400 | 620 | 480 | 250 | 10*20 | 850 | 510 | 840 | |||
| SG-100KVA | 780 | 420 | 650 | 500 | 250 | 10*20 | 900 | 550 | 890 | |||
| SG-300KVA | 180 | 95 | 185 | 100 | 75 | 6*14 | ||||||
| SG-500KVA | 180 | 95 | 185 | 100 | 75 | 6*14 | ||||||
| SG-1000KVA | 180 | 110 | 185 | 100 | 90 | 6*14 | ||||||
| SG-2000KVA | 230 | 125 | 205 | 130 | 100 | 9*16 | ||||||
| SG-3000KVA | 240 | 145 | 215 | 130 | 120 | 9*16 | ||||||
| SG-4000KVA | 240 | 155 | 235 | 130 | 130 | 9*16 | ||||||
| SG-5000KVA | 320 | 160 | 255 | 180 | 115 | 10*20 | 400 | 330 | 480 | |||
| SG-6000KVA | 300 | 165 | 280 | 180 | 140 | 10*20 | 400 | 330 | 480 | |||
Applications
Transformer can be used for LED lighting,radio and power supply,stepping motor,safety isolation,welding machine,charging equipment,monitoring security,automatic gating,radio and power amplifier,instrumentation, automatic gating,medical equipment, headphone power amplifier, DAC converter , precision instruments,amplifiers, new energy (solar),UPS power,etc.
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
