| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | CE,ISO |
| Model Number: | SG-50 |
| Minimum Order Quantity: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Phase: | Three Phase | Type: | Dry Type |
|---|---|---|---|
| Capacity: | 50KVA | Insulation Level: | F/H |
| Primary Voltage: | 110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 380V/ 415V/ 480V (or Customized) | Secondary Voltage: | 110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 380V/ 415V/ 480V (or Customized) |
| Frequency: | 50Hz/60Hz | Winding Material: | Copper/Aluminum |
| High Light: | 50kva Dry Type Isolation Transformer,Dry Type Isolation Transformer 110v,Copper 3Phase Dry Transformer |
||

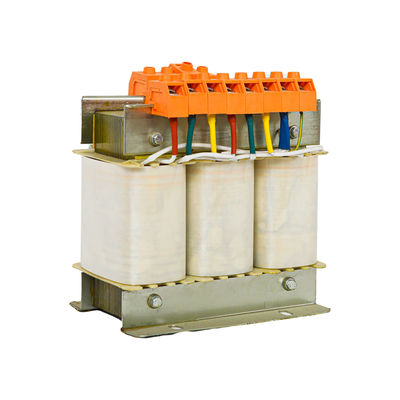

50kva 3 Phase Dry Type Isolation Transformer Step Down 110v 220v To 380v 440v
Summarization
Dry type transformers SG is the use of insulation paper-based insulation system, core and winding transformer. products are composed of the entire life of maintaining excellent electrical performance and mechanical properties, with low loss, low noise, energy saving and environmental protection, high capacity, high reliability, wide range of applications and other advantages. Widely used in local lighting, high-rise buildings, airports, docks, CNC machinery and equipment, mechanical and electronic equipment, medical equipment, rectification devices and other places.
main data
| Model | SG-50 |
| Type | Dry Type |
| Phase | 3 phase |
| Capacity | 0.1KVA to 2500KVA Available |
| Primary Voltage | 110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 380V/ 415V/ 480V (or customized) |
| Secondary Voltage | 110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 380V/ 415V/ 480V (or customized) |
| Frequency | 50Hz/60Hz |
| Insulation Level | F/H |
| Winding material | Copper/Aluminum |
| Cooling Method | Natural cooling and wind cooling |
| Operating temperature | -25~+80℃ |
| Certification | ISO,CE |
| Insulation Resistance | ≥5 MΩ |
| Efficiency | >98% |
| Noise | 35-65dB (1 meter) |
Specification
| Model (kva) |
Primary Voltage | Secondary Voltage | Coupling group tab | Shape dimension | Mounting dimension | K*J | The box dimension | |||||
| Bmax | Dmax±5 | Emax | A | C±5 | Bmax | Dmax±5 | Emax | |||||
| SG-10KVA | 660 400 380 200 |
380 220 110 36 |
Yyn0 Y/d D/y D/d |
360 | 180 | 305 | 215 | 140 | 10*20 | 450 | 360 | 480 |
| SG-15KVA | 360 | 200 | 335 | 215 | 155 | 10*20 | 450 | 360 | 480 | |||
| SG-20KVA | 420 | 210 | 350 | 250 | 170 | 10*20 | 490 | 400 | 540 | |||
| SG-30KVA | 420 | 230 | 380 | 250 | 190 | 10*20 | 490 | 400 | 540 | |||
| SG-50KVA | 680 | 350 | 550 | 420 | 220 | 10*20 | 800 | 510 | 840 | |||
| SG-80KVA | 750 | 400 | 620 | 480 | 250 | 10*20 | 850 | 510 | 840 | |||
| SG-100KVA | 780 | 420 | 650 | 500 | 250 | 10*20 | 900 | 550 | 890 | |||
| SG-300KVA | 180 | 95 | 185 | 100 | 75 | 6*14 | ||||||
| SG-500KVA | 180 | 95 | 185 | 100 | 75 | 6*14 | ||||||
| SG-1000KVA | 180 | 110 | 185 | 100 | 90 | 6*14 | ||||||
| SG-2000KVA | 230 | 125 | 205 | 130 | 100 | 9*16 | ||||||
| SG-3000KVA | 240 | 145 | 215 | 130 | 120 | 9*16 | ||||||
| SG-4000KVA | 240 | 155 | 235 | 130 | 130 | 9*16 | ||||||
| SG-5000KVA | 320 | 160 | 255 | 180 | 115 | 10*20 | 400 | 330 | 480 | |||
| SG-6000KVA | 300 | 165 | 280 | 180 | 140 | 10*20 | 400 | 330 | 480 | |||
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
