|Phase:||Three||Transformer Type:||Pad Mounted, Compartmental-Type|
|Primary Voltage:||13200V||Secondary Voltage:||208Y/120|
500 Kva Pad Mounted Transformer,
Pad Mounted Transformer 208v,
99% Efficiency Oil Type Transformer

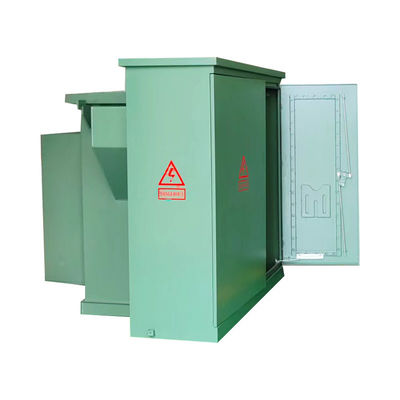

|Product Name||ANSI three phase pad mounted transformer|
|Rated Voltage||7.2KV,7.62KV,10KV,11KV,12.47KV,13.2KV,13.8KV,20KV or 33KV or 35KV|
|Rated Capacity||50KVA ~ 5000KVA|
|Standard||IEC, ANSI,DIN,BS, GB or other|
|Core and Winding material||Amorphous Metal Core, Copper Winding or Aluminium winding.|
1)There is no oil storage tank the height of the transformer is reduced,Can save installation space and transportation costs.
2)The elasticity of the corrugated radiator can compensate the oil volume change caused by the temperature change.
3)The box is the corrugated radiator tank, not only has the cooling function but also has the 'breathing' function.
4)the transformer oil does not contact with the air, which effectively prevents the oxygen and water from immersing the transformer and leading to the deterioration of performance (aging of materials and oil).
5)New structure of high and low voltage winding, reasonable arrangement for oil tube and connection which increasing the capacity of mechanical strength and anti-shortcut.
6)We employ spiral loops with longitudinal oil path to produce a better cooling effect. We improve the effectual support of the loop's terminal face to strengthen the anti-short circuit electricity capability.
|Three Phase Pad Mounted Transformer|
|Rated Power (KVA)||High Voltage (KV)||Low Voltage (V)||Loss (W)|
|No-load Loss (W)||On-load Loss (W)|
