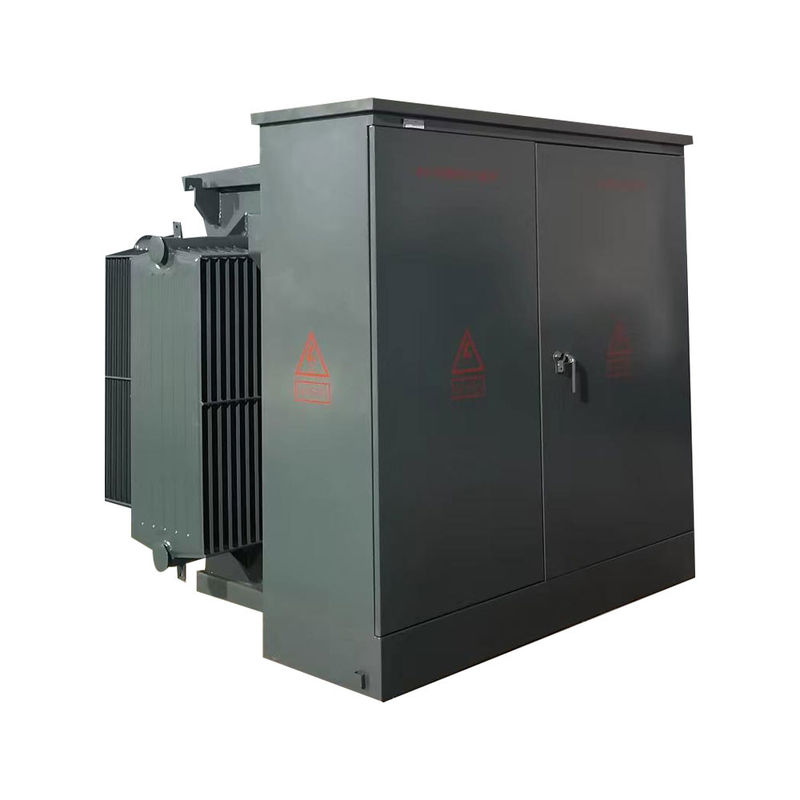

225 Kva Three Phase Pad Mounted Transformer Oil Immersed 12470v To 208v
Product structure
1) The transformer part and the control cabinet part of the United States variation, of which the transformer part is a fully sealed structure, and the insulating oil can be two types of high ignition point oil or ordinary oil.
2) The control cabinet is divided into a high-voltage room and a low-voltage room.
3) The high-voltage room is equipped with: high-voltage cable plug, lightning arrester, load switch operating handle, non-excitation tap switch handle, plug-in fuse, pressure release valve, thermometer, pressure gauge, oil Position gauges, oil filling plugs, oil drain valves, etc., load switches, off-excitation tap changers, plug-in fuses, etc. are all immersed in transformer oil together with the transformer core. The high-voltage cable and the transformer are connected by elbow cable connectors.
4) The low-voltage side can be installed with air circuit breakers, current transformers, as well as electric energy meters, ammeters and voltmeters, and output circuits and capacitance compensation devices can be configured according to user needs.
Specification
Rated Capacity | Voltage Group(kV) | Loss(kW) | Weight (kg) | (mm) | Gauge | ||||||||||
Connection Method | No-load | Load | No-load current | Impedance Voltage | (L) | (W) | (H) | ||||||||
(kVA) | HV | LV | % | % | % | % | Machine | Oil | Gross | Dimension | Vertical | Horizontal | |||
50 | 0.4 | Dyn11 Yd11 Dyn5 Yyn0 |
0.21 | 1.21 | 2 | 6.50% | 195 | 205 | 590 | 1000 | 950 | 1450 | 550 | 550 | |
100 | 0.29 | 2.02 | 1.8 | 320 | 240 | 790 | 1080 | 1000 | 1600 | 550 | 550 | ||||
125 | 0.34 | 2.38 | 1.7 | 395 | 270 | 950 | 1100 | 1030 | 1630 | 660 | 660 | ||||
160 | 0.36 | 2.83 | 1.6 | 460 | 285 | 1020 | 1130 | 1060 | 1630 | 660 | 660 | ||||
200 | 0.43 | 3.33 | 1.5 | 555 | 325 | 1170 | 1190 | 1060 | 1670 | 660 | 660 | ||||
250 | 0.51 | 3.96 | 1.4 | 630 | 340 | 1340 | 1260 | 1160 | 1700 | 660 | 660 | ||||
315 | 38.5 | 0.61 | 4.77 | 1.4 | 720 | 400 | 1530 | 1280 | 1240 | 1790 | 660 | 660 | |||
400 | 36.5 | 0.73 | 5.76 | 1.3 | 830 | 490 | 1780 | 1960 | 880 | 1900 | 820 | 820 | |||
500 | 35 | 0.86 | 6.93 | 1.2 | 930 | 510 | 1960 | 2020 | 940 | 1920 | 820 | 820 | |||
630 | 33 | 1.04 | 8.28 | 1.1 | 1085 | 600 | 2290 | 2070 | 1010 | 2010 | 820 | 820 | |||
800 | 1.23 | 9.9 | 1 | 1270 | 660 | 2640 | 2240 | 1040 | 2150 | 820 | 820 | ||||
1000 | 1.44 | 12.15 | 1 | 1495 | 735 | 3100 | 2300 | 1200 | 2150 | 820 | 820 | ||||
1250 | 1.76 | 14.67 | 0.9 | 1775 | 830 | 3630 | 2450 | 1280 | 2250 | 1070 | 1070 | ||||
1600 | 2.12 | 17.55 | 0.8 | 2140 | 935 | 4235 | 2220 | 1510 | 2350 | 1070 | 1070 | ||||
2000 | 2.61 | 21.5 | 0.8 | 2535 | 1035 | 4910 | 2310 | 1740 | 2440 | 1070 | 1070 | ||||
2500 | 3.15 | 23 | 0.8 | 3140 | 1190 | 5840 | 2370 | 1840 | 2490 | 1070 | 1070 |
Technical drawings
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
![]() |
