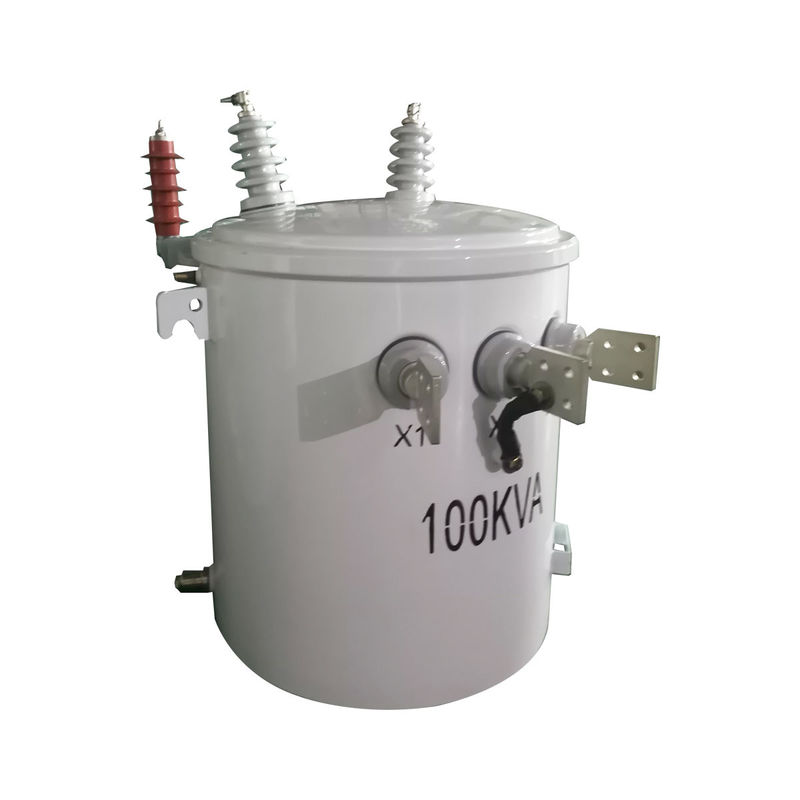

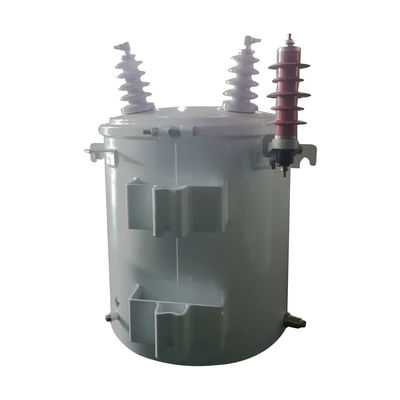

100Kva Single Phase Pole Mounted Oil Type Transformers 13.8Kv to 0.24Kv

Brand Name:	WINLEY
Model Number:	D-100/13
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Capacity:

100Kva Or Customized

Cooling Method:

ONAN/KNAN

Frequency:

50Hz/60Hz

Impedance Voltage:

Insulation Level:

Load Loss:

200KW

No-load Loss:

800KW

Efficiency:

≥ 99.1%

Supply Ability:

1000set/month

Highlight:

Oil Type Transformers 13.8Kv

100Kva Oil Type Transformers

Single Phase Pole Mounted Transformers

Product Description

100Kva Single Phase Pole Mounted Oil Type Transformers 13.8Kv

Feature

Cost-effective design
High efficiency and low noise levels
Dual voltage capability
Coating meets or exceeds IEEE C57 standard
Excellent sealing for protection against environmental factors
Polymer-type low voltage bushings
Porcelain-type high voltage bushings
Convenient cover or sidemounted voltage bushings
Spade or clamp type terminals
Compatible with both mineral oil and biodegradable vegetable oil as insulating oil
Provision for surge arrester bracket, with brackets available if needed

100Kva Single Phase Pole Mounted Oil Type Transformers 13.8Kv to 0.24Kv 0

Performance Characteristic

1. The products are widely used in power transmission and distribution of industrial and agricultural power networks.
2. Iron core is made of cold-rolled silicon-steel sheet with high conduction of magnetism and adopts pulling-plank structure, so that its magnetic route is short, losses and noise level is low.
3. Compress wire is adopted for winding so losses are low and have good ability withstand short-circuit.
4. The oil tank is bell type with the structure of full folding plate type, having an excellent exterior and easy for maintenance.

Specification

Rated power(KVA)	High	H.V. Tap	Low	Short-Circuit	No-load loss(W)	On-load loss(W)	No load current(%)
Rated power(KVA)	Voltage	range	Voltage	Impedance(%)	No-load loss(W)	On-load loss(W)	No load current(%)
5	12.47 13.2 13.8 14.4 34.5	±5% ±2x2.5%	120-240/240-480 /347/600	3.5	35	145	4
10					55	260	3.5
16					65	365	3.2
20					80	430	3
30					100	625	2.8
40					125	775	2.5
50					150	950	2.3
63					180	1125	2.1
80					200	1400	2
100					240	1650	1.9
167					285	1950	1.8
250					365	2365	1.7

Production process

100Kva Single Phase Pole Mounted Oil Type Transformers 13.8Kv to 0.24Kv 1

100Kva Single Phase Pole Mounted Oil Type Transformers 13.8Kv to 0.24Kv 2

100Kva Single Phase Pole Mounted Oil Type Transformers 13.8Kv to 0.24Kv 3

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
