45kva Three Phase Pad Mounted Oil Type Power Distribution Transformer

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: S-45k
Minimum Order Quantity: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Phase: Three Phase Cooling Method: ONAN/KNAN
Frequency: 50Hz/60Hz Insulation Level: E
Capacity: 45KVA Primary Voltage: 13200GrdY/7620
Secondary Voltage: 208Y/120 Temperature Rise: 65℃
High Light:

Oil Type Power Distribution Transformer


Pad Mounted Power Distribution Transformer


45kva Oil Type Transformer

Product Description

45KVA Three Phase Pad Mounted Oil Type Transformer Loop Feed Type Combined Distribution Transformer




1)There is no oil storage tank the height of the transformer is reduced,Can save installation space and transportation costs.
2)The elasticity of the corrugated radiator can compensate the oil volume change caused by the temperature change.
3)The box is the corrugated radiator tank, not only has the cooling function but also has the 'breathing' function.
4)the transformer oil does not contact with the air, which effectively prevents the oxygen and water from immersing the transformer and leading to the deterioration of performance (aging of materials and oil).
5)New structure of high and low voltage winding, reasonable arrangement for oil tube and connection which increasing the capacity of mechanical strength and anti-shortcut.
6)We employ spiral loops with longitudinal oil path to produce a better cooling effect. We improve the effectual support of the loop's terminal face to strengthen the anti-short circuit electricity capability.

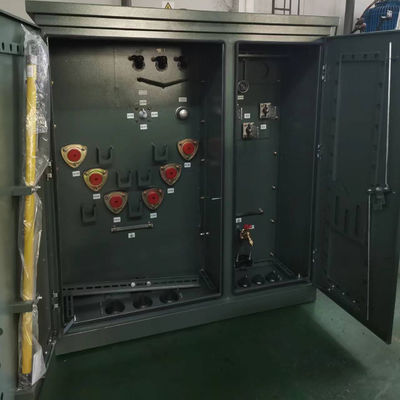

45kva Three Phase Pad Mounted Oil Type Power Distribution Transformer 0


Main data


Transformer Type Pad Mounted, Compartmental-Type
Transformer Configuration Liquid Filled Pad Mounted
Transformer Feed Type Loop Feed
Phase Three Phase
Capacity 45 KVA
Vector Group YnYn0
Primary Voltage 13200GrdY/7620
Primary Voltage Class 15 kV Class
Primary Phasor Grounded Wye
Secondary Voltage 208Y/120
Secondary Voltage Class 1.2 kV Class
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class KNAN; Self-Cooled
Impedance 4.5%
Load Break Switch Rating 200-Amp, 15 kV
Efficiency Standard(s) Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation) K-1 (Standard)
Fluid (Oil) Capacity* 70 Gallons
Fluid (Oil) Weight* 539 lb
Winding Material Aluminum
Ambient Temperature Rating 40°C
Sound Level 48 dBA
Enclosure Rating NEMA 3R Weatherproof Wiring Cabinet, Sealed Tank
Dimensions* 68-W x 39-D x 50-H
Dry Weight (w/o Oil)* 663 lb
Total Weight (Liquid Filled)* 1,701 lb
Efficiency % 99.00%
No Load Loss (in watts) +/- 114W
Full Load Loss (in watts) at 100% +/- 570W
Total Load Loss (in watts) at 100% +/- 684W




Rated Capacity Loss(w) Dimension(mm) Weight(kg)
No-load Loss(W) On-load Loss W D H Oil Weight (L) Total Weight (KG)
45kVA 160 1000 1730 990 1270 416 950
75kVA 180 1250 1730 990 1270 435 1020
150kVA 280 2200 1730 1245 1270 473 1225
300kVA 480 3650 1830 1295 1270 605 1655
500kVA 680 5100 2260 1345 1270 720 2110
750kVA 980 7500 2260 1448 1628 1022 2950
1000kVA 1150 10300 2260 1500 1625 1325 3720
1500kVA 1640 14500 2210 1470 2150 1552 4672
2000kVA 2160 20645 2380 1600 2220 1855 5670
2500kVA 2680 27786 3070 1650 2330 2006 6580
3000kVA 3300 30300 3260 1850 2460 2336 7500
3750kVA 4125 37875 4080 2060 2680 2650 8450

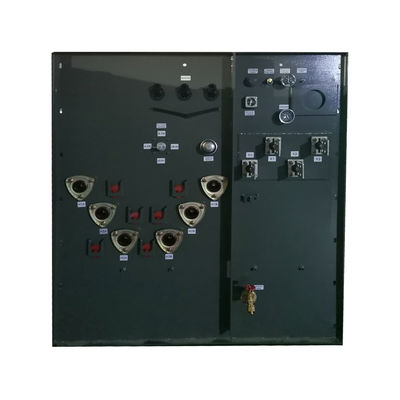

45kva Three Phase Pad Mounted Oil Type Power Distribution Transformer 1


Factory Tests

  • Winding Resistance Test
  • Insulation Resistance Test
  • Voltage Ratio Error Test
  • Short-circuit Impedance Test
  • No-load Loss (Wattage) Test
  • Load Loss (Wattage) Test
  • Induced Voltage Withstand Test
  • Separate Source Voltage Withstand TestPressure Integrity Test Test
  • Pressure Integrity Test Test

Production process


150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 4

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 5

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 6




1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
