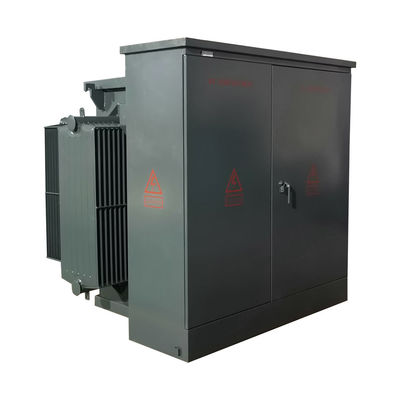

225kVA Three Phase Pad Mounted Oil Type Transformer 12470V Copper

Brand Name: WINLEY
Model Number: S-225k
MOQ: 1unit
Price: $1000-$150000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO
Capacity:
225 KVA
Cooling Method:
ONAN/KNAN
Frequency:
60Hz
Impedance Voltage:
5.8%
Temperature Rise:
65°C
Winding Material:
Copper
Vector Group:
Dd0
Tapping Range:
±2*2.5% （5taps）
Supply Ability:
1000set/month
Highlight:

Oil Type Transformer 12470V

,

Copper Oil Type Transformer

,

225kVA Pad Mounted Transformer

Product Description

225KVA Three Phase pad mounted Oil type transformer

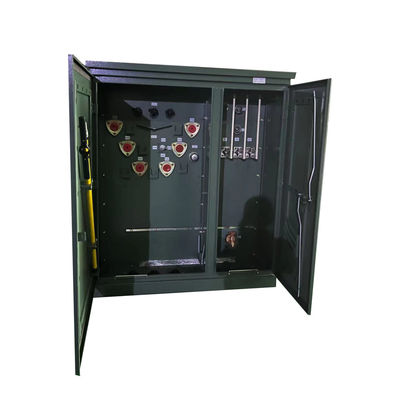

Feature



1) 5-position tap changer
2) Bayonet fuses partial-range current-limiting fuses
3) Automatic action pressure relief device
4) Oil level gauge.
5) 4 position load break switch
6) Oil temperature gauge.
7) Pressure/vacuum gauge.
8) Drain valve with sampler.



225kVA Three Phase Pad Mounted Oil Type Transformer 12470V Copper 0



Technical Specification

225kVA Three Phase Pad Mounted Oil Type Transformer 12470V Copper 1

225kVA Three Phase Pad Mounted Oil Type Transformer 12470V Copper 2



Production process





225kVA Three Phase Pad Mounted Oil Type Transformer 12470V Copper 3225kVA Three Phase Pad Mounted Oil Type Transformer 12470V Copper 4225kVA Three Phase Pad Mounted Oil Type Transformer 12470V Copper 5





FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
