| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | CE,ISO |
| Model Number: | 1000KVA |
| Minimum Order Quantity: | 1unit |
| Price: | $1000-$150000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Type: | Oil Type Pad Mounted | Phase: | Three |
|---|---|---|---|
| Impedance: | 4.5% | Capacity: | 1Mva |
| Primary Voltage: | 4100V Or Customized | Secondary Voltage: | 480V Or Customized |
| Frequency: | 60Hz | Temperature Rise: | 65°C |
| High Light: | Pad Mounted Three Phase Transformer,Step Down 3Phase Transformer,1 Mva Oil Type Transformer |
||

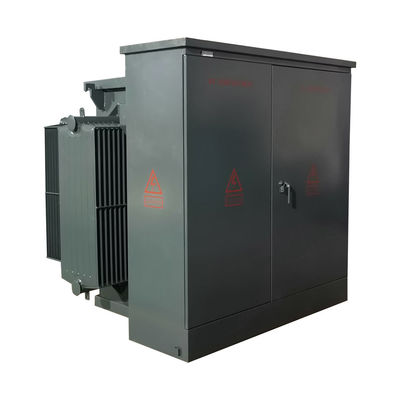

1 Mva Pad Mount Three Phase Transformer 4160v To 480v Step-Down
Feature
1. Pentahead Bolt Entry Assembly
2. High-Fire Point Insulating Fluid
3. Non-PCB Insulating Fluid
4. Tamper Proof Housing

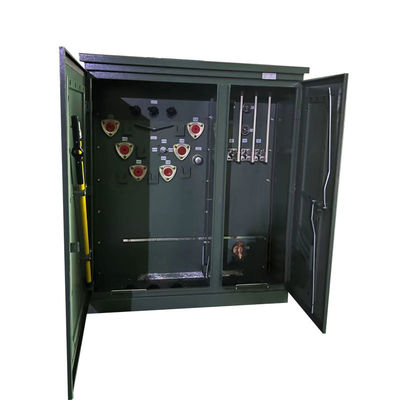

5. Hinged Front Compartment Doors, Pad Lockable
6. NEMA 3R Wiring Compartment
7. Hot Stick Included, HV Door Mount
Performance Characteristic
1) There is no oil storage tank, and the lid is equipped with a three-in-one device for oil supply, oil level indication and pressure release valve.
2) When the transformer is packaged, the vacuum oiling process is used to completely remove the moisture in the transformer.
3) After sealing, the transformer oil does not contact with the air, which effectively prevents the oxygen and water from immersing the transformer and leading to the deterioration of performance (aging of materials and oil).
4) The box is the corrugated radiator tank, not only has the cooling function but also has the 'breathing' function. The elasticity of the corrugated radiator can compensate the oil volume change caused by the temperature change.
Specification
| Rated Capacity | Voltage Group(kV) | Loss(kW) | Weight (kg) | (mm) | Gauge | ||||||||||
| Connection Method | No-load | Load | No-load current | Impedance Voltage | (L) | (W) | (H) | ||||||||
| (kVA) | HV | LV | % | % | % | % | Machine | Oil | Gross | Dimension | Vertical | Horizontal | |||
| 50 | 0.4 | Dyn11 Yd11 Dyn5 Yyn0 |
0.21 | 1.21 | 2 | 6.50% | 195 | 205 | 590 | 1000 | 950 | 1450 | 550 | 550 | |
| 100 | 0.29 | 2.02 | 1.8 | 320 | 240 | 790 | 1080 | 1000 | 1600 | 550 | 550 | ||||
| 125 | 0.34 | 2.38 | 1.7 | 395 | 270 | 950 | 1100 | 1030 | 1630 | 660 | 660 | ||||
| 160 | 0.36 | 2.83 | 1.6 | 460 | 285 | 1020 | 1130 | 1060 | 1630 | 660 | 660 | ||||
| 200 | 0.43 | 3.33 | 1.5 | 555 | 325 | 1170 | 1190 | 1060 | 1670 | 660 | 660 | ||||
| 250 | 0.51 | 3.96 | 1.4 | 630 | 340 | 1340 | 1260 | 1160 | 1700 | 660 | 660 | ||||
| 315 | 38.5 | 0.61 | 4.77 | 1.4 | 720 | 400 | 1530 | 1280 | 1240 | 1790 | 660 | 660 | |||
| 400 | 36.5 | 0.73 | 5.76 | 1.3 | 830 | 490 | 1780 | 1960 | 880 | 1900 | 820 | 820 | |||
| 500 | 35 | 0.86 | 6.93 | 1.2 | 930 | 510 | 1960 | 2020 | 940 | 1920 | 820 | 820 | |||
| 630 | 33 | 1.04 | 8.28 | 1.1 | 1085 | 600 | 2290 | 2070 | 1010 | 2010 | 820 | 820 | |||
| 800 | 1.23 | 9.9 | 1 | 1270 | 660 | 2640 | 2240 | 1040 | 2150 | 820 | 820 | ||||
| 1000 | 1.44 | 12.15 | 1 | 1495 | 735 | 3100 | 2300 | 1200 | 2150 | 820 | 820 | ||||
| 1250 | 1.76 | 14.67 | 0.9 | 1775 | 830 | 3630 | 2450 | 1280 | 2250 | 1070 | 1070 | ||||
| 1600 | 2.12 | 17.55 | 0.8 | 2140 | 935 | 4235 | 2220 | 1510 | 2350 | 1070 | 1070 | ||||
| 2000 | 2.61 | 21.5 | 0.8 | 2535 | 1035 | 4910 | 2310 | 1740 | 2440 | 1070 | 1070 | ||||
| 2500 | 3.15 | 23 | 0.8 | 3140 | 1190 | 5840 | 2370 | 1840 | 2490 | 1070 | 1070 | ||||
