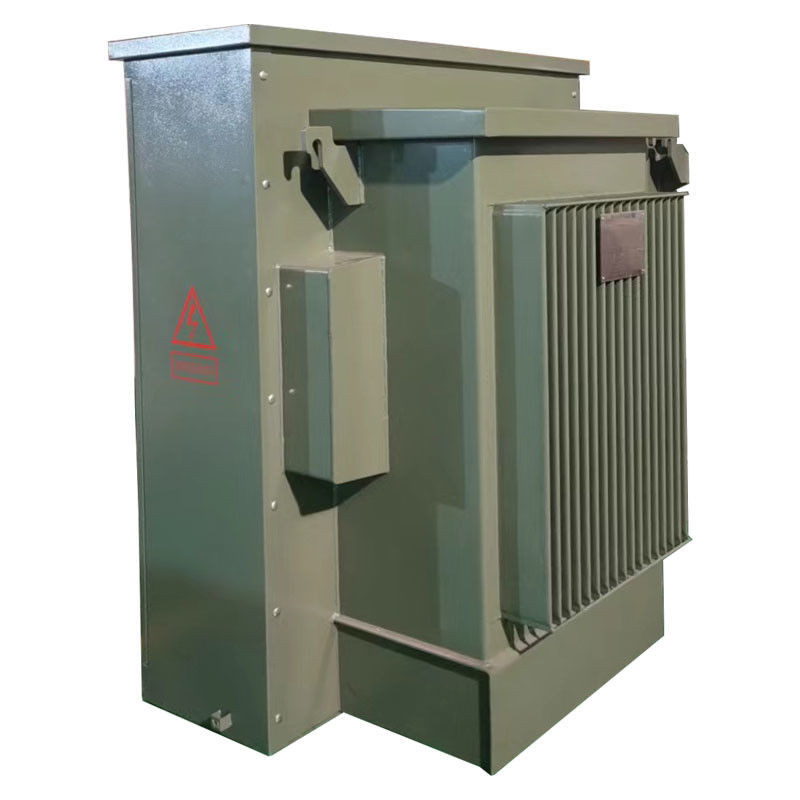

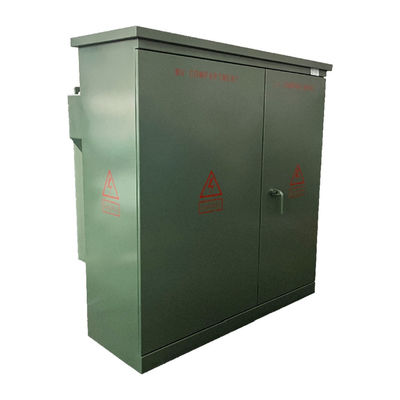

500kva Three Phase Pad Mount Transformer 12470v 208y Mineral Oil

Brand Name: WINLEY
Model Number: 500KVA
MOQ: 1unit
Price: $1000-$150000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Type:
Oil Type Pad Mount
Phase:
Three
Rated Capacity:
100VA-5000KVA
Cooling Method:
ONAN/KNAN
Primary Voltage:
12470V
Secondary Voltage:
208Y/120
Frequency:
50HZ/60HZ
Standard:
ANSI,IEC
Supply Ability:
1000set/month
Highlight:

500kva Pad Mount Transformer

,

Three Phase Pad Mount Transformer

,

Three Phase Transformer 12470v

Product Description

500kVA Three Phase Pad Mount Transformer 12470V 208Y Mineral Oil





Feature

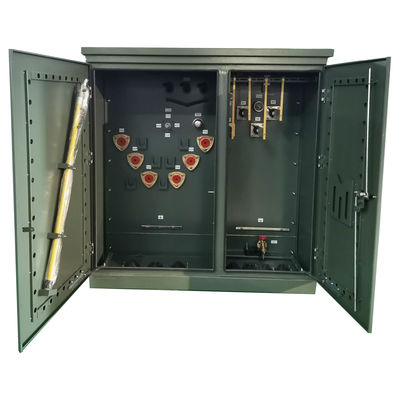

1. Live front construction & dead front construction.
2. live front :externally clamped high voltage porcelain bushings with a single eyebolt,clamp-type connector.
3. dead front :externally clamped high voltage bushing wells for loadbreak or non-loadbreak inserts.
4. HV and LV compartment doors-hinged and lift-off type with 120⁰ holding bars.
5. Steel HV/LV compartment barrier.

6. HV connection:Live front-external clamoed and removable HV bushings with eyebolt,clamp type connector.
7. LV connection:Externally clamped polymer porcelain LV bushing with 4-12 Hole.



Specification



500kva Three Phase Pad Mount Transformer 12470v 208y Mineral Oil 0



Production process



500kva Three Phase Pad Mount Transformer 12470v 208y Mineral Oil 1500kva Three Phase Pad Mount Transformer 12470v 208y Mineral Oil 2500kva Three Phase Pad Mount Transformer 12470v 208y Mineral Oil 3





FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
