UPS Isolation Transformer
>

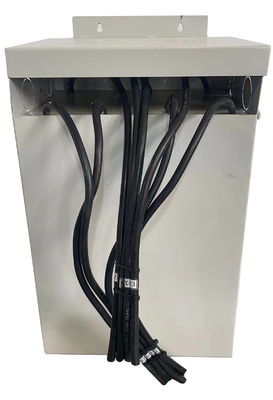

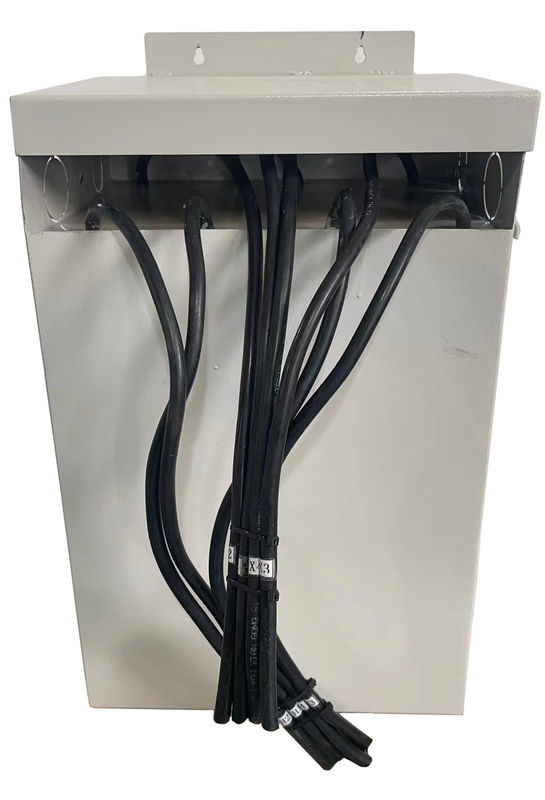

10KVA Single Phase UPS Isolation Transformer Encapsulated Buck Boost

10KVA Single Phase UPS Isolation Transformer Encapsulated Buck Boost

Brand Name: WINLEY
Model Number: DG-10KVA
MOQ: 1
Price: $100-$15000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE,UL
Usage:
Distribution
Type:
Encapsulated
Phase:
Single
Rated Capacity:
10KVA
Voltage:
120V/240V
Protection:
NEMA 3R
Cooling:
AN
Standard:
DOE2016
Supply Ability:
1000set/month
Highlight:

Single Phase UPS Isolation Transformer

,

10KVA UPS Isolation Transformer

,

Encapsulated Ups Isolator

Product Description

10KVA Single Phase UPS Isolation Transformer Encapsulated Buck Boost





1. Feature



● Encapsulated design

● Suitable for indoor or outdoor applications

● Totally enclosed, nonventilated enclosures

● Enclosures are NEMA 3R rated

● Mountable in any position indoors and upright-only outdoors

● 180ºC insulation system

● 115°C rise standard; 80°C rise optional

● Available in single-phase

● Encapsulated transformers, such as buck-boost and low voltage lighting transformers, are specifically excluded from the scope of U.S. DOE energy efficiency requirements.





2.Specification

Product Name Single phase dry type transformer
Product Model DG-10KVA
Winding Material Enameled copper wire
Capacity 10KVA
Input Voltage 120V/240v
Output Voltage 12V/24v
Frequency 60Hz
Connection Type Ii0
Insulation Level F/H
Enclosures Protection Level NEMA 3R
Pressure-tight Test 3500V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz / 480V / 60s
Cooling Method Natural or air cooling
Temperature Rise ≤115K
Transformation Ratio <3%
Air Carrying Current <3%
Impedance Voltage about 4.5%
Total Losses 4%
Efficiency DOE 2016
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO,UL
The technical parameter for reference only, for exactly technical information, please feel free to contact us!



F Class 3 Phase Auto Transformer 0

F Class 3 Phase Auto Transformer 1

10KVA Single Phase UPS Isolation Transformer Encapsulated Buck Boost 2



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
