Oil Type Transformer
>

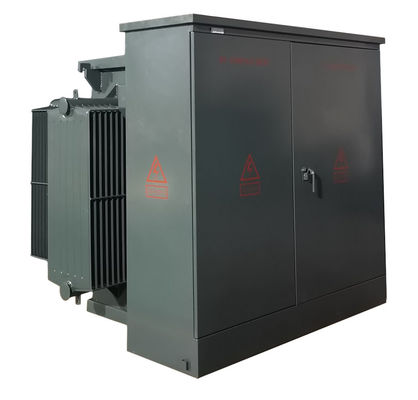

2500KVA Pad Mounted Oil Type Transformer 13800V 124700V Loop Feed

2500KVA Pad Mounted Oil Type Transformer 13800V 124700V Loop Feed

Brand Name: WINLEY
Model Number: S11-2500/12.47
MOQ: 1
Price: $1500-$150000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Usage:
Power
Phase:
Three
Frequency:
60Hz
Color:
Mussel Green
Material:
Copper/Aluminum
Voltage:
13800V 12470V
Type:
Loop Feed
Cooling:
KNAN
Supply Ability:
1000set/month
Highlight:

Oil Type Transformer 13800V

,

2500KVA Pad Mounted Oil Transformer

,

Loop Feed Oil Type Transformer

Product Description

2500KVA Pad Mounted Oil Type Transformer 13800V 124700V Loop Feed





Features:



1) Dead front(or live front), loop feed.
2) 200 amp wells and inserts.
3) Secondary spades with supports.
4) Oil level gauge.
5) 4 position load break switch
6) Oil temperature gauge.
7) Pressure/vacuum gauge.
8) Drain valve with sampler.



Specification:



Technical Data for Three Phase Pad Mounted Transformer
Rated Power (KVA) Loss (W) Dimension(mm) Weight(kg)
  No-load Loss (W) On-load Loss (W) W D H
75KVA 180 1250 1390 910 1430 645
150KVA 280 2200 1510 980 1530 989
300KVA 480 3650 1660 1080 1680 1415
500KVA 680 5100 1810 1160 1790 1905
750KVA 980 7500 2030 1300 2030 2755
1000KVA 1150 10300 1651 1549 1854 3235
1500KVA 1640 14500 2210 1470 2150 5835
2000KVA 2160 20645 2380 1600 2220 6430
2500KVA 2680 27786 3070 1650 2330 8865
3000KVA 3300 30300 3260 1850 2460 11300
3750KVA 4125 37875 4080 2060 2680 14400



Description:



We can make this substion as user and customers requirement under their drawing/single line diagram (SLD) and need .We design & produce this substation under the international standard of IEC1330 ,H.V.standard IEC62271-200.



HV & LV compartment is with completed function.

1.)H.V.compartment has various of power supply methods when testing power supply in 1 time, it also can be installed with H.V.testing appliances to reach the demand of H.V.testing.



2.)The transformer compartment can be choosed S11,S13 or other low consumption oil immersed transformer and dry type transformer. The transformer compartment has automatic start wind cooling systems and lighting systems.



3.)Low voltage compartment can be made according to users' need , it adopts fixed or assembled structure to be electrical power supply system,it has many function like light distribution ,power distribution, reactive power ,electrical power testing..etc to improve the power distribution quality and satisfy the user.



This substation body mainly has metal material, stainless steel material , non -metal material ...which can be choosed by user and customers



This substation is a very important power distribution and supply unit in the electrical cable power net.it is a kind of completed set of power supply with H.V.controlling,protection and converting ,distribution.. it used in 3 phase AC 50Hz and rated current max 1600KVA transformer.It is widely used in industrial and mining enterprises, residential quarters, hospital, mall, high-rise buildings and other distribution systems.



For this substation, we mainly produce & export 11KV, 15KV,20KV,24KV,33KV type.



2500KVA Three Phase Oil Type Transformer Pad mounted Live Front Dead Front 0

2500KVA Three Phase Oil Type Transformer Pad mounted Live Front Dead Front 1

2500KVA Pad Mounted Oil Type Transformer 13800V 124700V Loop Feed 2

FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
