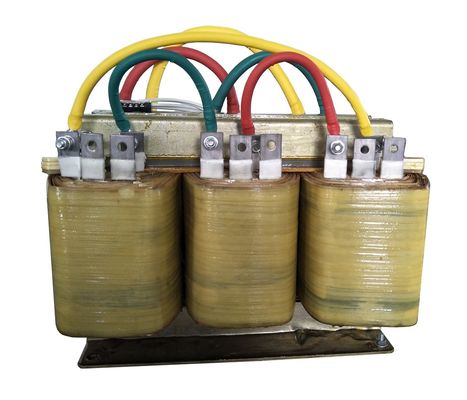

112.5KVA Three Phase Dry Type Transformer 400Hz 480Y 277V 220Y 127V

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE,UL
Model Number: SG-112.5KVA
Minimum Order Quantity: 1
Price: $1500-$150000
Packaging Details: Plywood case
Delivery Time: 10days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Usage: Industrial Power Phase: Three
Coil Structure: EI Frequency: 400Hz
Power: 112.5KVA Primary Voltage: 480Y 277V
Secondary Voltage: 220Y 127V Insulation Level: H
High Light:

Dry Type Transformer 400Hz

,

112.5KVA Dry Type Transformer

,

480Y 3 Phase Transformer


Product Description

112.5KVA Three Phase Dry Type Transformer 400Hz 480Y 277V 220Y 127V





1. Feature



Efficient

High magnetic permeability core

Pure copper coil

Durable

Top level quality materials

Customized

100% match the devices





2. Specification

Product Name Three phase dry type transformer
Product Model SG-120KVA
Winding Material Enameled copper wire
Capacity 120KVA
Input Voltage 480V
Output Voltage 320V/265V
Frequency 50/60Hz
Connection Type DYN1
Insulation Level F/H
Enclosures Protection Level IP00
Pressure-tight Test 3500V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz / 830V / 60s
Cooling Method Natural or air cooling
Temperature Rise ≤115K
Transformation Ratio <3%
Air Carrying Current <3%
Impedance Voltage about 4.5%
Total Losses 4%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!



F Class 3 Phase Auto Transformer 0

F Class 3 Phase Auto Transformer 1

112.5KVA Three Phase Dry Type Transformer 400Hz 480Y 277V 220Y 127V 2



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
