| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | ISO,CE |
| Model Number: | S11-1500KVA |
| Minimum Order Quantity: | 1 |
| Price: | $1500-$150000 |
| Packaging Details: | Pallet |
| Delivery Time: | 10days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Usage: | Outdoor Power | Coil Number: | Customized |
|---|---|---|---|
| Type: | Combined | Frequency: | 50/60Hz |
| Voltage: | 19920V 7200V 6900V | HV Side: | RMU/SF6 |
| Class: | 20KV | Material: | Copper |
| High Light: | 1500KVA Combined Oil Type Transformer,Combined Oil Type Transformer 19920V |
||

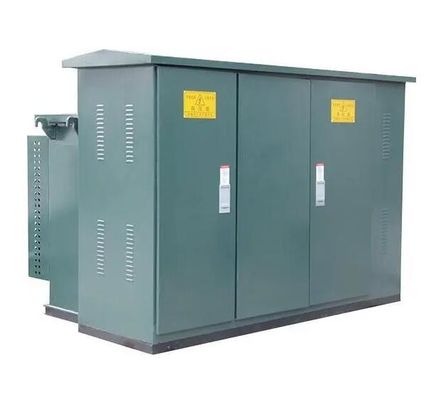

1500KVA Combined Oil Type Transformer 19920V 7200V 6900V
Features:
WINLEY delivers the most reliable inventory of oil–filled pad mounted transformers for your utility, university, hospital, industrial or commercial energy needs. Featuring new, in-stock and build to order options, our pad mounted transformers provide dependable and cost-effective power output for almost every application.
Temperature and liquid level gauges.
A pressure relief device and/or pressure relief valve.
A two-position on/off load break switch.
Bayonet current sensing fuses.
Distribution class arresters.
An external drain valve and sampler that allow easy access for DGA tests.
Specification:
| Technical Data for Three Phase Pad Mounted Transformer | ||||||
| Rated Power (KVA) | Loss (W) | Dimension(mm) | Weight(kg) | |||
| No-load Loss (W) | On-load Loss (W) | W | D | H | ||
| 75KVA | 180 | 1250 | 1390 | 910 | 1430 | 645 |
| 150KVA | 280 | 2200 | 1510 | 980 | 1530 | 989 |
| 300KVA | 480 | 3650 | 1660 | 1080 | 1680 | 1415 |
| 500KVA | 680 | 5100 | 1810 | 1160 | 1790 | 1905 |
| 750KVA | 980 | 7500 | 2030 | 1300 | 2030 | 2755 |
| 1000KVA | 1150 | 10300 | 1651 | 1549 | 1854 | 3235 |
| 1500KVA | 1640 | 14500 | 2210 | 1470 | 2150 | 5835 |
| 2000KVA | 2160 | 20645 | 2380 | 1600 | 2220 | 6430 |
| 2500KVA | 2680 | 27786 | 3070 | 1650 | 2330 | 8865 |
| 3000KVA | 3300 | 30300 | 3260 | 1850 | 2460 | 11300 |
| 3750KVA | 4125 | 37875 | 4080 | 2060 | 2680 | 14400 |
Description:
We can make this substion as user and customers requirement under their drawing/single line diagram (SLD) and need .We design & produce this substation under the international standard of IEC1330 ,H.V.standard IEC62271-200.
HV & LV compartment is with completed function.
1.)H.V.compartment has various of power supply methods when testing power supply in 1 time, it also can be installed with H.V.testing appliances to reach the demand of H.V.testing.
2.)The transformer compartment can be choosed S11,S13 or other low consumption oil immersed transformer and dry type transformer. The transformer compartment has automatic start wind cooling systems and lighting systems.
3.)Low voltage compartment can be made according to users' need , it adopts fixed or assembled structure to be electrical power supply system,it has many function like light distribution ,power distribution, reactive power ,electrical power testing..etc to improve the power distribution quality and satisfy the user.
This substation body mainly has metal material, stainless steel material , non -metal material ...which can be choosed by user and customers
This substation is a very important power distribution and supply unit in the electrical cable power net.it is a kind of completed set of power supply with H.V.controlling,protection and converting ,distribution.. it used in 3 phase AC 50Hz and rated current max 1600KVA transformer.It is widely used in industrial and mining enterprises, residential quarters, hospital, mall, high-rise buildings and other distribution systems.
For this substation, we mainly produce & export 11KV, 15KV,20KV,24KV,33KV type.
