61.2KVA Three Phase Dry Type Transformer 6530V 13290V 200℃ 472V

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: SG-61.2KVA
Minimum Order Quantity: 1
Price: $20-$60,000
Packaging Details: Plywood case
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 1000pcs per month
Detail Information
Usage: Baker Equipment Primary: 472V
Secondary: 6530V/13290V Insulation: 200℃
Efficiency: High Efficiency Material: 100% Copper Wire
Temperature Rise: 125K Cooling: AN
High Light:

61.2KVA Three Phase Dry Type Transformer

,

100% Copper Wire Dry Type Transformer

,

472V Three Phase Transformer


Product Description

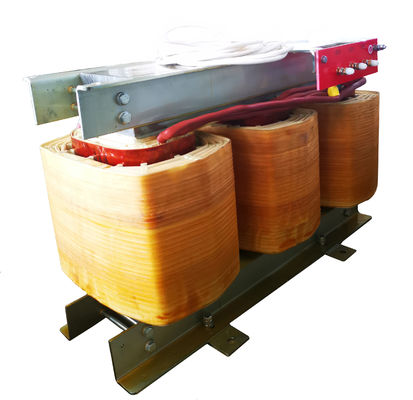

61.2KVA Three Phase Dry Type Transformer 6530V 13290V 200℃ 472V





Features



1) Accurate voltage and sufficient power capacity.

2) Product performance is stable.

3) High quality electrical insulating paper is used to enhance transformer function and improve transformer service life and reliability.

4) Using high quality insulation board,can realize stable and reliable connection of the series wiring,beautiful and generous appearance.

5) Adopt high quality channel steel,good bearing capacity,make the machine more stable in work,longer service life.



Specification



Product Name Three phase dry type transformer
Product Model SG/QZB/SBK/Power transformer/ZSG/SBDG/EPS UPS
Winding Material Enameled copper wire or enameled aluminum wire
Capacity 100VA~5000KVA
Input Voltage 415V
Output Voltage 380V
Frequency 50/60Hz
Connection Type DYN11/YYN0
Insulation Level F/H
Enclosures Protection Level IP00 or higher
Pressure-tight Test 2500V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz / 830V / 60s
Cooling Method Natural or air cooling
Temperature Rise ≤115K
Transformation Ratio <3%
Air Carrying Current <3%
Impedance Voltage about 4.5%
Total Losses 4%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!





Production process

6 Pulse High Voltage Three Phase Isolation Transformer Copper 0

61.2KVA Three Phase Dry Type Transformer 6530V 13290V 200℃ 472V 1





FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
