|Type:||Pad Mounted||Primary Voltage:||13800Y/7970V Or 13200Y/7620V|
|Part:||Live Front Or Dead Front||Cooling:||ONAN|
2500KVA Oil Type Transformer,
60Hz Three Phase Transformer,
Alumnium Oil Type Transformer

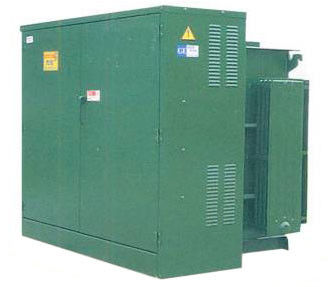

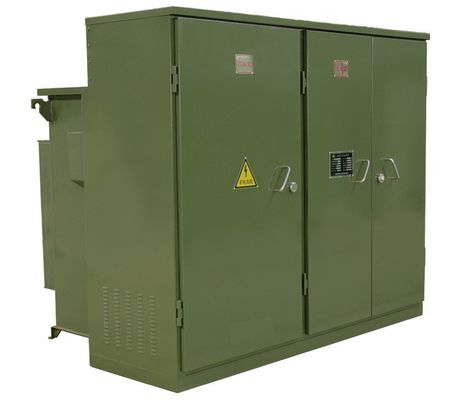

2500KVA Three Phase Oil Type Transformer Pad Mounted Live Front Dead Front
1) Dead front(or live front), loop feed.
2) 200 amp wells and inserts.
3) Secondary spades with supports.
4) Oil level gauge.
5) 4 position load break switch
6) Oil temperature gauge.
7) Pressure/vacuum gauge.
8) Drain valve with sampler.
|Technical Data for Three Phase Pad Mounted Transformer|
|Rated Power (KVA)||Loss (W)||Dimension(mm)||Weight(kg)|
|No-load Loss (W)||On-load Loss (W)||W||D||H|
We can make this substion as user and customers requirement under their drawing/single line diagram (SLD) and need .We design & produce this substation under the international standard of IEC1330 ,H.V.standard IEC62271-200.
HV & LV compartment is with completed function.
1.)H.V.compartment has various of power supply methods when testing power supply in 1 time, it also can be installed with H.V.testing appliances to reach the demand of H.V.testing.
2.)The transformer compartment can be choosed S11,S13 or other low consumption oil immersed transformer and dry type transformer. The transformer compartment has automatic start wind cooling systems and lighting systems.
3.)Low voltage compartment can be made according to users' need , it adopts fixed or assembled structure to be electrical power supply system,it has many function like light distribution ,power distribution, reactive power ,electrical power testing..etc to improve the power distribution quality and satisfy the user.
This substation body mainly has metal material, stainless steel material , non -metal material ...which can be choosed by user and customers
This substation is a very important power distribution and supply unit in the electrical cable power net.it is a kind of completed set of power supply with H.V.controlling,protection and converting ,distribution.. it used in 3 phase AC 50Hz and rated current max 1600KVA transformer.It is widely used in industrial and mining enterprises, residential quarters, hospital, mall, high-rise buildings and other distribution systems.
For this substation, we mainly produce & export 11KV, 15KV,20KV,24KV,33KV type.
