| Brand Name: | WINLEY |
| Model Number: | TESGZ-100KVA |
| MOQ: | 1unit |
| Price: | $20-$8000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |

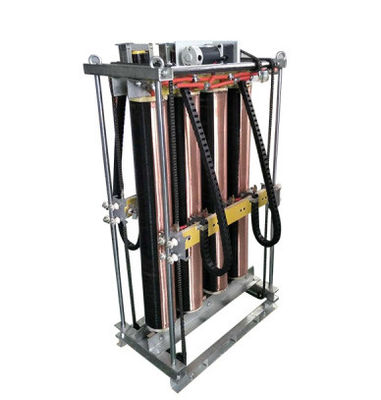

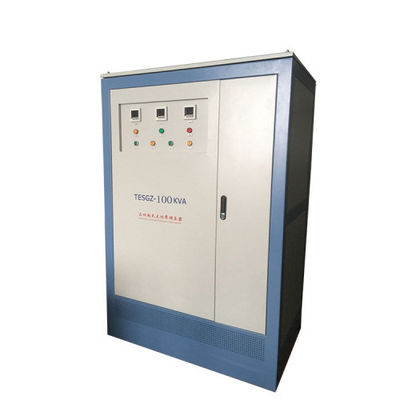

100KVA Motor Control Three Phase Voltage Regulator 415V/415V 2%
Features:
The three-phase fully automatic compensating power regulator is designed to stabilize the AC voltage. When the external power supply network voltage fluctuates or the load changes cause voltage fluctuations, it can automatically maintain the stability of the output voltage. Compared with other types of voltage stabilizers, this series of products has the advantages of large capacity, high efficiency, no waveform distortion, and stable voltage adjustment. It is suitable for a wide range of loads, can withstand instantaneous overload, and can work continuously for a long time. Manual/automatic switching. It has the advantages of overvoltage protection, phase loss, phase sequence protection and mechanical failure automatic protection, as well as small size, light weight, convenient use and installation, and reliable operation.
Specification:
| No. | Description | |
| 1 | Model | TESGZ-100KVA |
| 2 | Name | Three-phase voltage regulator |
| 3 | Rated power | 100KVA |
| 4 | Input voltage | 415V±20% |
| 5 | Output voltage | 415V |
| 6 | Output current | 139A |
| 7 | Output voltage accuracy | ±2% |
| 8 | Phase | Three |
| 9 | Frequency | 50/60Hz |
| 10 | Efficiency | >98% |
| 11 | Response time | The input voltage is equivalent to a nominal value jump of ±10% and the response time is less than 1.5s |
| 12 | Waveform distortion | ≤0.1% |
| 13 | Mains function | Three-phase product power supply, voltage regulation convenient switching |
| 14 | Over voltage | The input voltage is higher than the set value, and the power is automatically turned off. |
| 15 | Over current | The input current is larger than the set value, and the power is automatically turned off. |
| 16 | Phase protection | The regulator does not turn on or cut off the output when the input voltage is out of phase |
| 17 | Control system | Computer digital display intelligent control |
| 18 | Bypass | Manually to the mains state when the regulator needs maintenance or an abnormality |
| 19 | Working way | Long-term, continuous unattended work |
| 20 | Insulation resistance | >100MΩ |
| 21 | Withstand voltage | AC 2000V/60s |
| 22 | Grounding resistance | 25A<100mΩ |
| 23 | Warranty | 36 monthes |
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
|
