200KVA Low Voltage Transformer Three Phase Dry Type 690V To 400V

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: SG-200KVA
Minimum Order Quantity: 1unit
Price: $20-$8000
Packaging Details: Pallet
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 1000units/month
Detail Information
Usage: Power Type: Low Voltage
Primary Voltage: 690V Secondary Voltage: 400V
Coil Structure: UI Efficiency: >98 %
Cooling: Air Cooling And Cooling Fan Material: Copper
High Light:

200KVA low voltage transformer

,

Three Phase 690v to 400v transformer

,

low voltage transformer 690V To 400V


Product Description

200KVA Low Voltage Three Phase Dry Type Transformer 690V To 400V





1. Feature



A transformer is an electrical device that is used in AC power distribution systems to safely “step up” or “step down” voltages to meet the incoming power requirements of connected equipment. Transformers achieve this goal without modifying the frequency or amount of electrical power to help ensure connected devices can operate reliably.





2.Specification

Product Name Three phase dry type transformer
Product Model SG-200KVA
Winding Material Enameled copper wire
Capacity 200KVA
Input Voltage 690V
Output Voltage 400V
Frequency 50/60Hz
Connection Type DYN1
Insulation Level F/H
Enclosures Protection Level IP43
Pressure-tight Test 3500V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz / 830V / 60s
Cooling Method Natural or air cooling
Temperature Rise ≤115K
Transformation Ratio <3%
Air Carrying Current <3%
Impedance Voltage about 4.5%
Total Losses 4%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!

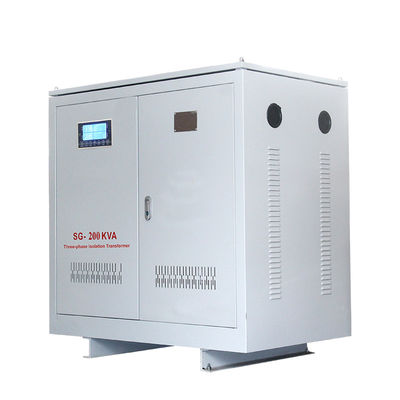

200KVA Low Voltage Transformer Three Phase Dry Type 690V To 400V 0

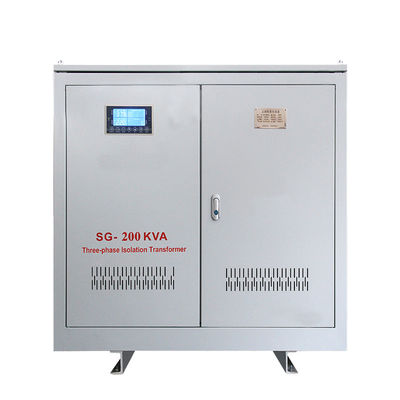

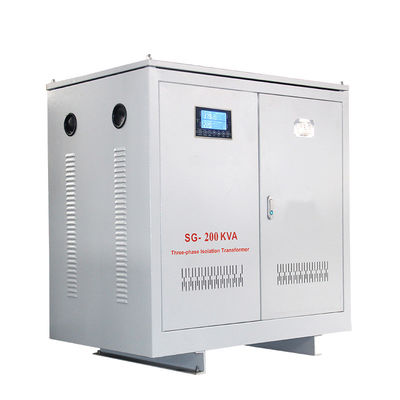

200KVA Low Voltage Transformer Three Phase Dry Type 690V To 400V 1200KVA Low Voltage Transformer Three Phase Dry Type 690V To 400V 2

FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
