35KVA UPS Isolating IP32 Three Phase Dry Type Transformer 600V 400V

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: SG-35KVA
Minimum Order Quantity: 1unit
Price: $20-$8000
Packaging Details: Plywood case
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 1000units/month
Detail Information
Usage: UPS Isolating Input Voltage: 600V
Output Voltage: 400V Enclosure: IP32
Winding: Enameled Copper Wire Insulation Level: F
Standard: EN61558 UL5085 Cooling: AN/AF
High Light:

IP32 Three Phase Dry Type Transformer


ups isolation transformer 600V


35KVA Three Phase Dry Type Transformer

Product Description

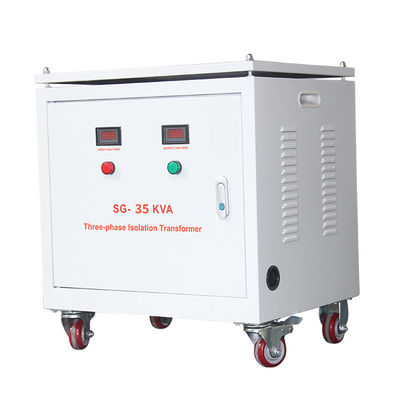

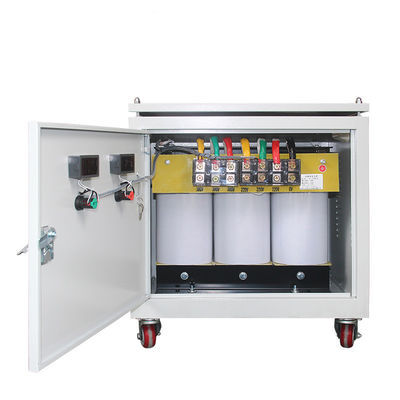

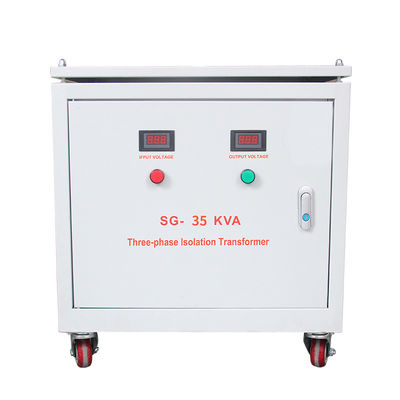

35KVA UPS Isolating IP32 Three Phase Dry Type Transformer 600V 400V



1. Feature


1. High-efficiency design, truly reaching more than 98%.

2. Appearance design, beautiful and novel, high power density, small size, and high space utilization rate.

3. The product is divided into two types: open type and protection type according to the structure. The protection type is made of steel plate processed into a box shell. The transformer is inside the box shell, and there are inlet and outlet holes outside the box shell to facilitate the installation of power lines. If necessary, voltmeter, ammeter, temperature control alarm system, steering wheel, etc. can be added according to user requirements.




Product Name Three phase dry type transformer
Product Model SG-35KVA
Winding Material Enameled copper wire
Capacity 35KVA
Input Voltage 600V
Output Voltage 400V
Frequency 50/60Hz
Connection Type DYN1
Insulation Level F/H
Enclosures Protection Level IP23
Pressure-tight Test 3500V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz / 830V / 60s
Cooling Method Natural or air cooling
Temperature Rise ≤115K
Transformation Ratio <3%
Air Carrying Current <3%
Impedance Voltage about 4.5%
Total Losses 4%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!


35KVA UPS Isolating IP32 Three Phase Dry Type Transformer 600V 400V 0

35KVA UPS Isolating IP32 Three Phase Dry Type Transformer 600V 400V 135KVA UPS Isolating IP32 Three Phase Dry Type Transformer 600V 400V 2




1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
