Three Phase Dry Type Transformer
>
30KVA Low Voltage Transformer Three Phase Dry Type 230V 110V IP20

30KVA Low Voltage Transformer Three Phase Dry Type 230V 110V IP20

Brand Name: WINLEY
Model Number: SG-30KVA
MOQ: 1unit
Price: $20-$8000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Usage:
Power
Frequency:
50/60Hz
Type:
Low Voltage
Input Voltage:
230V
Output Voltage:
110V
Protection:
IP20
Material:
Copper
Cooling Method:
AN
Supply Ability:
1000units/month
Highlight:

30KVA Low Voltage Transformer

,

3 phase transformer IP20

,

Low Voltage Transformer 230V 110V

Product Description

30KVA Low Voltage Three Phase Dry Type Transformer 230V 110V IP20





1. Feature



Establishing a new neutral-grounding in the transformer can relieve the common mode interference and other neutral problems in the power grid. The isolation transformer converts the three-wire delta connection into a four-wire Yo system, and shielding further eliminates the high-frequency pulse interference and internal coupling of the transformer. Noise, although the shielded isolation transformer can effectively prevent various NG interference (pulse and high-frequency noise), the transformer must be properly grounded and very strict, otherwise the anti-common mode interference will be ineffective. We can design and produce high-quality isolation transformers for customers.





2.Specification

Product Name Three phase dry type transformer
Product Model SG-30KVA
Winding Material Enameled copper wire
Capacity 30KVA
Input Voltage 230V
Output Voltage 110V
Frequency 50/60Hz
Connection Type DYN1
Insulation Level F/H
Enclosures Protection Level IP00
Pressure-tight Test 3500V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz / 830V / 60s
Cooling Method Natural or air cooling
Temperature Rise ≤115K
Transformation Ratio <3%
Air Carrying Current <3%
Impedance Voltage about 4.5%
Total Losses 4%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!

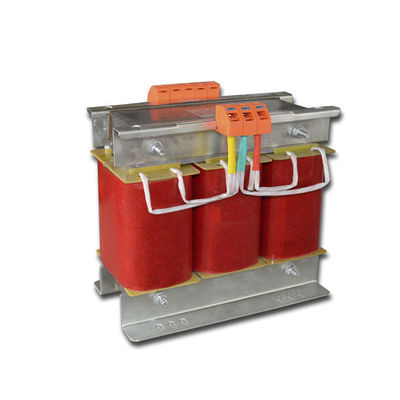

30KVA Low Voltage Transformer Three Phase Dry Type 230V 110V IP20 0

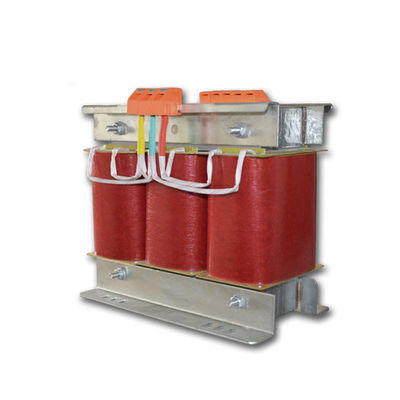

30KVA Low Voltage Transformer Three Phase Dry Type 230V 110V IP20 1



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
