| Brand Name: | WINLEY |
| Model Number: | SG-15KVA |
| MOQ: | 1unit |
| Price: | $20-$8000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |

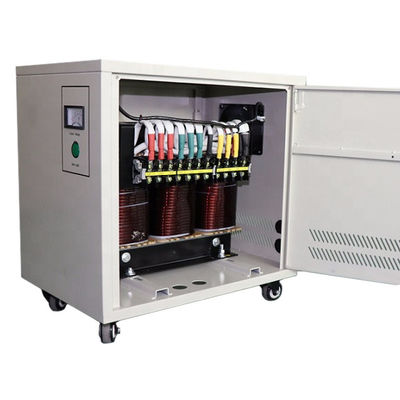

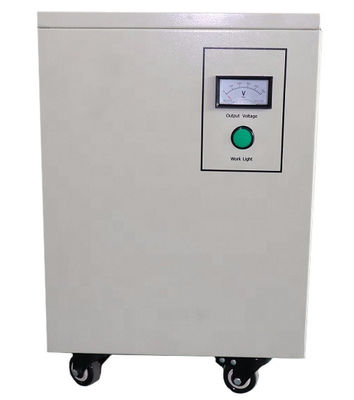

15KVA Step Up Three Phase Dry Type Transformer 220V/380V 440V/480V
1. Feature
① Insulation material
Using high temperature resistant insulating paper as the insulating material, it has multiple properties of high temperature insulation, flame retardancy and moisture resistance.
②Terminal block
Lower capacity transformers used terminal block, with beautiful appearance, excellent pressure resistance, temperature resistance, and flame retardant performance. High-quality copper bars are used for high power.
③Iron feet
It mainly adopts CNC bending and cold-rolling plate, with multi-colored plating (golden), blue zinc (silver white), white zinc (ivory white), surface anodizing (black) and other environmentally friendly electroplating options.
2.Specification
| Product Name | Three phase dry type transformer |
| Product Model | OSG-15KVA |
| Winding Material | Enameled copper wire |
| Capacity | 15KVA |
| Input Voltage | 220/380V |
| Output Voltage | 440/480V |
| Frequency | 50/60Hz |
| Connection Type | DYN1 |
| Insulation Level | F/H |
| Enclosures Protection Level | IP44 |
| Pressure-tight Test | 3500V/min |
| Insulation Resistance | >100MΩ |
| Ground Resistance | 25A<100milliohm |
| Induction Withstand Voltage Test | 125Hz / 830V / 60s |
| Cooling Method | Natural or air cooling |
| Temperature Rise | ≤115K |
| Transformation Ratio | <3% |
| Air Carrying Current | <3% |
| Impedance Voltage | about 4.5% |
| Total Losses | 4% |
| Efficiency | 80%--99% |
| Operating Temperature | -15℃～40℃ (40℃, 90%R.H., 56days) |
| Storage Temperature | -25℃～100℃(40℃, 90%R.H., 56days) |
| Certificate | CE,ISO |
| The technical parameter for reference only, for exactly technical information, please feel free to contact us! | |
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
|
