| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | ISO,CE |
| Model Number: | SG-35KVA |
| Minimum Order Quantity: | 1unit |
| Price: | $25~$60000/Unit |
| Packaging Details: | Plywood case |
| Delivery Time: | 10-15days |
| Payment Terms: | T/T |
| Supply Ability: | 1000units/month |
| Usage: | Machine | Coil Number: | Double Winding And Multi-winding |
|---|---|---|---|
| Primary Voltage: | 480Y/277V | Secondary Voltage: | 240Y/139V |
| Frequency: | 50/60Hz | Material: | 100% Copper Wire |
| Advantage: | OEM/ODM Service | Design: | Full Load Operation |
| High Light: | Full Load UPS Isolation Transformer,Double winding full load transformer,Copper Wire UPS Isolation Transformer |
||

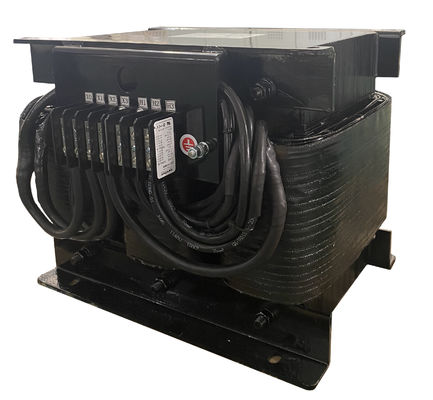

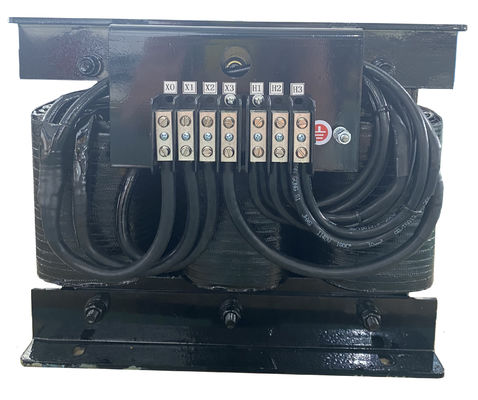

Full Load Operation UPS Isolation Transformer 50/60Hz 100% Copper Wire
Features
Dry-type isolation transformer is a multi-coil (double coil and above) structure transformer. The primary and secondary windings are insulated from each other. Its transformation ratio is fixed and tapped. It can step up or step down. In addition to changing the voltage, the isolation transformer can also electrically isolate the input winding and output winding from each other to avoid the dangers caused by touching live objects (or metal parts that may be charged due to insulation damage) and the ground at the same time; in addition, The isolation transformer also has a certain effect of suppressing various interferences.
Main data
| Product Name | Three phase isolation transformer |
| Product Model | SG/QZB/SBK/Power transformer/ZSG/SBDG/EPS UPS |
| Winding Material | Enameled copper wire or enameled aluminum wire |
| Capacity | 100VA~5000KVA |
| Input Voltage | 415V or customized |
| Output Voltage | 380V or customized |
| Frequency | 50/60Hz |
| Connection Type | DYN11/YYN0 |
| Insulation Level | F/H |
| Enclosures Protection Level | IP00 or higher |
| Pressure-tight Test | 2500V/min |
| Insulation Resistance | >100MΩ |
| Ground Resistance | 25A<100milliohm |
| Induction Withstand Voltage Test | 125Hz / 830V / 60s |
| Cooling Method | Natural or air cooling |
| Temperature Rise | ≤115K |
| Transformation Ratio | <3% |
| Air Carrying Current | <3% |
| Impedance Voltage | about 4.5% |
| Total Losses | 4% |
| Efficiency | 80%--99% |
| Operating Temperature | -15℃～40℃ (40℃, 90%R.H., 56days) |
| Storage Temperature | -25℃～100℃(40℃, 90%R.H., 56days) |
| Certificate | CE,ISO |
| The technical parameter for reference only, for exactly technical information, please feel free to contact us! | |
