UPS Isolation Transformer
>

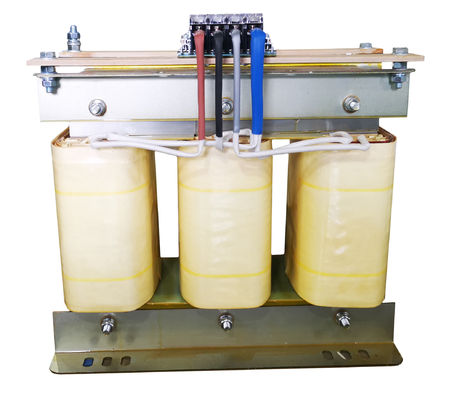

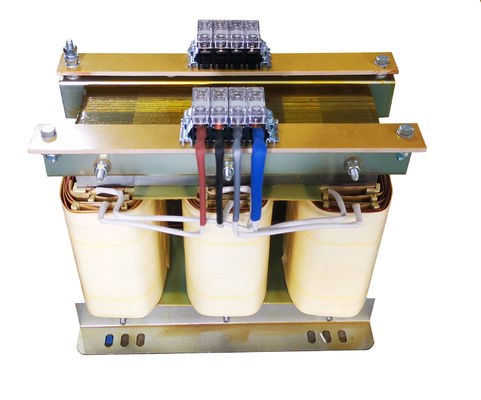

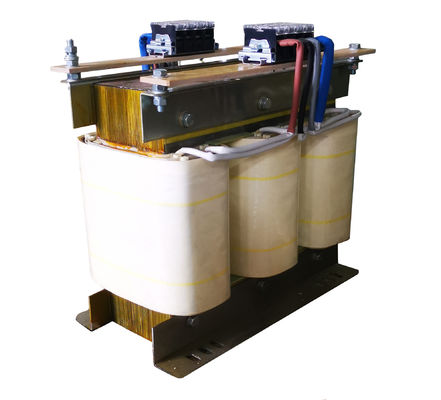

Terminal UPS Isolation Transformer

Terminal UPS Isolation Transformer

Brand Name: WINLEY
Model Number: SG-30KVA
MOQ: 1unit
Price: $25~$60000/Unit
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Coil Structure:
EI
Phase:
Three
Input Voltage:
480V/440V/415V/400V/380V
Insulation:
H
Standard:
EN61558 UL5085
Terminal:
Finger Safe
Cooling Method:
AN
Copper Wire:
180℃/200℃/220℃
Supply Ability:
1000units/month
Highlight:

UPS Isolation Transformer 480V

,

terminal transformer H Class

,

UPS Isolation Transformer 440V

Product Description

Finger Safe Terminal UPS Isolation Transformer H Class 480V/440V/415V/400V/380V





Features



A shielding layer is added between the input winding and the output winding to ensure complete electrical isolation from each other, avoiding the dangers caused by touching live objects (or metal parts that may be charged due to insulation damage) and the ground at the same time, and has strong lightning resistance , Anti-surge and inhibit various interference effects.

The transformer is produced by a special process of mold winding, dense binding, and integral epoxy casting, which greatly strengthens the ability of anti-lightning and anti-surge impact.




Main Data
Product Name Three phase isolation transformer
Product Model SG/QZB/SBK/Power transformer/ZSG/SBDG/EPS UPS
Winding Material Enameled copper wire or enameled aluminum wire
Capacity 100VA~5000KVA
Input Voltage 415V or customized
Output Voltage 380V or customized
Frequency 50/60Hz
Connection Type DYN11/YYN0
Insulation Level F/H
Enclosures Protection Level IP00 or higher
Pressure-tight Test 2500V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz / 830V / 60s
Cooling Method Natural or air cooling
Temperature Rise ≤115K
Transformation Ratio <3%
Air Carrying Current <3%
Impedance Voltage about 4.5%
Total Losses 4%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!





Production process

Terminal UPS Isolation Transformer 0

Terminal UPS Isolation Transformer 1



FAQ



1. Q: Can I have a sample order? ±

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
