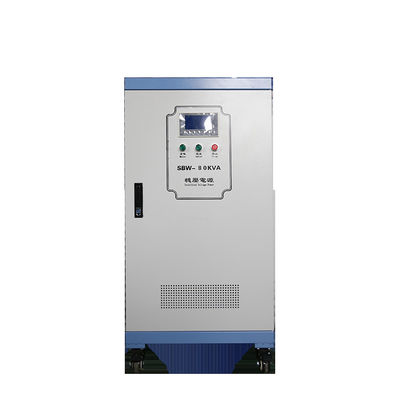

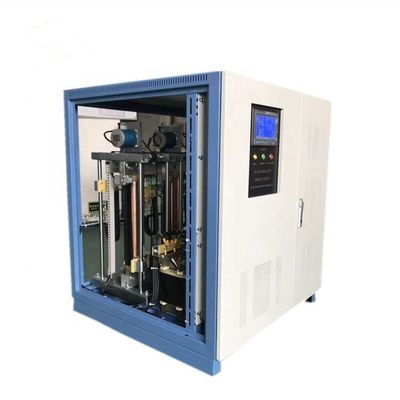

200KVA Three Phase Voltage Regulator Servo Stabilizer Copper Automatic High Precision Adjustable
Features:
It has the characteristics of large capacity, high efficiency, convenient use and maintenance, and reliable operation. It can be matched with any kind of load, and is widely used in transportation, post and telecommunications, communications, radio and television, computer systems, injection molding, CNC machine tools and various motors and other equipment.
Main data:
| Product Name | Automatic Voltage Stabilizer |
| Product Model | SBW/DBW/SBW-F/SBW-DT |
| Capacity | 10KVA~2500KVA |
| Input Voltage | Customized |
| Input Current | Customized |
| Output Voltage | Customized |
| Output Current | Customized |
| Output Voltage Accuracy | 2%-4% (can be set) |
| Frequency | 50/60Hz |
| Response Time | < 1.5s when the input voltage is ±10% (rated value changes base on input voltage) |
| Waveform Distortion | ≤0.1% |
| Regulating Method | Automatic / Manual (selectional) |
| Over Voltage Protection | When the input voltage is higher than the set value, the power automatically switches to the mains without break. |
| Over Current Protection | When the input current is higher than the set value, the supply automatically switches to the mains without break. |
| Phase loss Protection | When the input voltage phase loss, the power automatically switches to the mains without break. |
| Control System | Digital display screen, smart control system |
| Bypass Function | When the regulator needs to be maintenance, the power automatically switches to the mains without break. |
| Working Methods | Long-term, continuous automatically work |
| Insulation Resistance | >100MΩ |
| Withstand Voltage Test | AC 2000V / 60S |
| Ground Resistance | 25A ＜100 milliohms |
| Cooling Method | Air cooling |
| Efficiency | 80%--99% |
| Operating Temperature | -15℃～40℃ (40℃, 90%R.H., 56days) |
| Storage Temperature | -25℃～55℃ (40℃, 90%R.H., 56days) |
| Certificate | CE,ISO |
| The technical parameter for reference only, for detailed technical information, please feel free to contact us! | |
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
|
