80KVA 3 Phase Power Regulator

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: SBW-80KVA
Minimum Order Quantity: 1unit
Price: $20-$8000
Packaging Details: Plywood case
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 1000units/month
Detail Information
Usage: Precision Equipment Output Voltage: Three Phase 0-430V
Frequency: 45-65HZ Efficiency: 98%(Power Grade)
Protection: Low-volt Display: Meter Display / LED Display
Withstand Voltage: >2500V Response Time: ≤1.5S
High Light:

80KVA 3 phase power regulator

,

65HZ automatic voltage regulator for transformer

,

3 phase power regulator 430V


Product Description

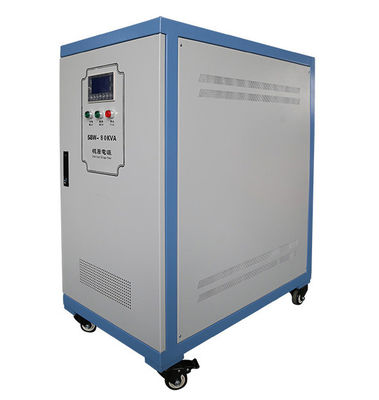

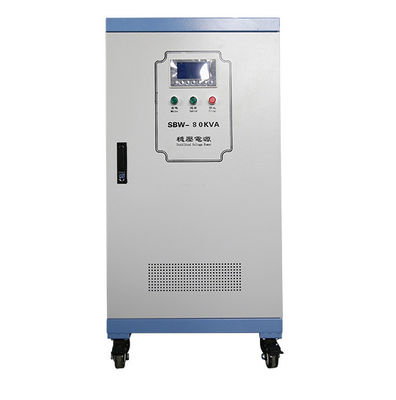

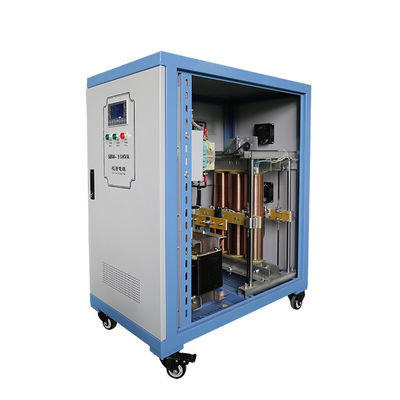

80KVA Precision equipment Three Phase Voltage Regulator 0-430V





Features:



1) Good efficiency and excellent characteristics

The use of high magnetic flux and low iron loss silicon steel sheet minimizes no load loss and no load current. The efficiency is highest in full load use, which enables the voltage stabilizer to exert high efficiency and reduce power loss.

2) Wide AC power input range

The system is designed to withstand a wide input range, and it can still work normally under poor AC input power. All components have been specially selected to withstand instantaneous high voltage and large current.





Specification:

No. Description
1 Model SBW-80KVA
2 Name Three-phase voltage regulator
3 Rated power 80KVA
4 Input voltage 415V±20%
5 Output voltage 415V
6 Output current 111A
7 Output voltage accuracy ±2%
8 Phase Three
9 Frequency 50/60Hz
10 Efficiency >98%
11 Response time The input voltage is equivalent to a nominal value jump of ±10% and the response time is less than 1.5s
12 Waveform distortion ≤0.1%
13 Mains function Three-phase product power supply, voltage regulation convenient switching
14 Over voltage The input voltage is higher than the set value, and the power is automatically turned off.
15 Over current The input current is larger than the set value, and the power is automatically turned off.
16 Phase protection The regulator does not turn on or cut off the output when the input voltage is out of phase
17 Control system Computer digital display intelligent control
18 Bypass Manually to the mains state when the regulator needs maintenance or an abnormality
19 Working way Long-term, continuous unattended work
20 Insulation resistance >100MΩ
21 Withstand voltage AC 2000V/60s
22 Grounding resistance 25A<100mΩ
23 Warranty 36 monthes



80KVA 3 Phase Power Regulator 0



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
