| Brand Name: | WINLEY |
| Model Number: | 25VA |
| MOQ: | 100Units |
| Price: | $2-$60 |
| Packaging Details: | Pallet |
| Payment Terms: | T/T |

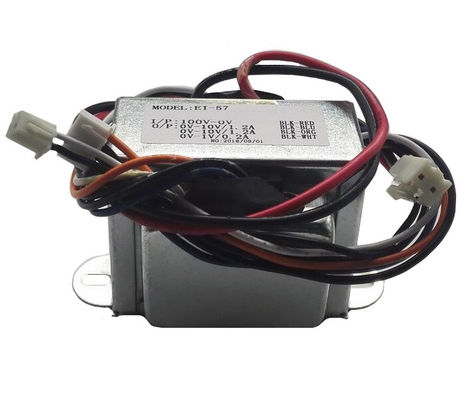

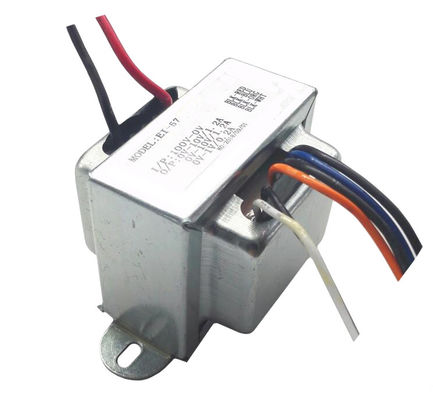

25VA Hi-Fi Stereo EI Power Transformer 100V 10V/10V/1V 50/60Hz
Features:
1. Custom designs available
2. High efficiency of over 95%
3. High frequency range 10kHz-1MHz
4. High isolation strength
5. Lower profile and weight
6. high power density
7. High-temperature resistant
8. Operating temperature -40°C to +125°C
9. Power range 10w-10kw
10.High Power Electronic Transformer
Specifications:
| Items | Single phase power transformer |
| Capacity | 25VA |
| Phase | Single phase |
| Input Voltage | 100V |
| Output Voltage | 10-10-1V |
| Output Current | 1.2A-1.2A-0.2A |
| Voltage Regulation | 10% |
| Working Noise | ≤ 60dB |
| Efficiency | ≥ 80% |
| Temperature Rise | ≤ 80K |
| Waveform Distortion | ≤ 3% |
| Dielectric Strength | 2500V |
| Insulation Resistor | DC 500V 100ΜΩ Min |
| Insulation Class | Class B |
| Conditions of Use |
1. Ambient Temp: -30℃~+55℃ 2. Relative humidity: 10%~90% |
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥100pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
|
