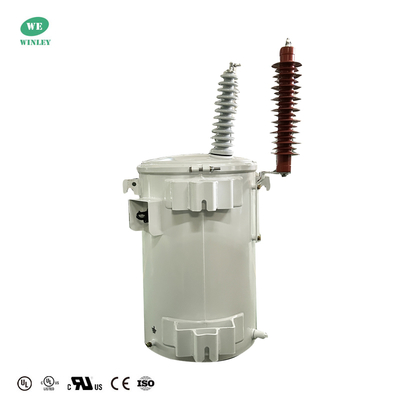

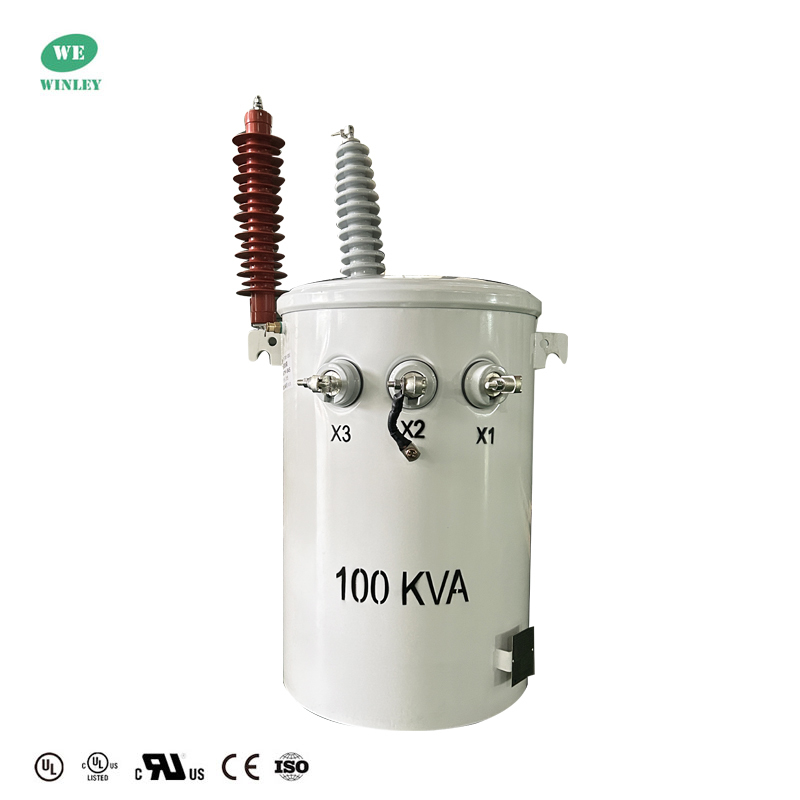

100KVA Pole Mounted Overhead Distribution Transformer Single Phase Oil Immersed 13800V To 120V

Brand Name:	WINLEY
Model Number:	D-100/13.8
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL, CE, ISO

Type:

Pole Mount Distribution Transformer

Phase:

Single

Capacity:

100KVA

Primary Voltage:

13800GrdY/7968

Secondary Voltage:

120/240V

Frequency Rise:

50/60Hz

Insulation Rating:

Class E Insulation

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Product Description

100KVA Pole Mounted Overhead Distribution Transformer Single Phase Oil Immersed 13800V To 120V

WINLEY's pole-mounted transformers, UL/cUL certified, offer 10-333 kVA capacity and exceed ANSI, IEEE, CSA, IEC60076 standards. With decades of expertise, we deliver full technical support and export globally to North/South America and Southeast Asia. Our safe, stable, and efficient designs cut operational costs for reliable power solutions.

100KVA Pole Mounted Overhead Distribution Transformer Single Phase Oil Immersed 13800V To 120V 0

Main Data

Transformer Type	Overhead Distribution Transformer, Conventional Type
Transformer Configuration	Liquid Filled Pole Mounted
Phase	Single Phase
Capacity	100 KVA
Primary Voltage	13800GrdY/7968
Secondary Voltage	120/240V (L-N-L)
Secondary Phasor	Dual Winding Single Phase
Secondary BIL	30 KV
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	ONAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	50 dBA

Drawing

100KVA Pole Mounted Overhead Distribution Transformer Single Phase Oil Immersed 13800V To 120V 3

Feature

Cost-effective design
High efficiency and low noise levels
Dual voltage capability
Coating meets or exceeds IEEE C57 standard
Excellent sealing for protection against environmental factors
Polymer-type low voltage bushings
Porcelain-type high voltage bushings
Convenient cover or sidemounted voltage bushings
Spade or clamp type terminals
Compatible with both mineral oil and biodegradable vegetable oil as insulating oil
Provision for surge arrester bracket, with brackets available if needed

100KVA Pole Mounted Overhead Distribution Transformer Single Phase Oil Immersed 13800V To 120V 4

Specifications

10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Production process

100KVA Pole Mounted Overhead Distribution Transformer Single Phase Oil Immersed 13800V To 120V 5

100KVA Pole Mounted Overhead Distribution Transformer Single Phase Oil Immersed 13800V To 120V 6

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
