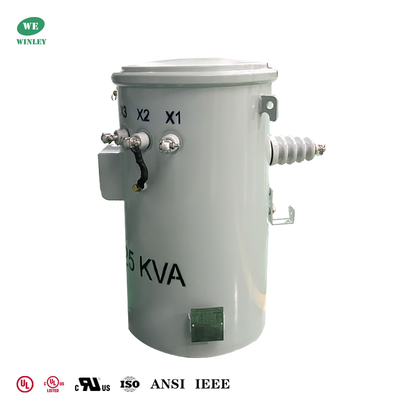

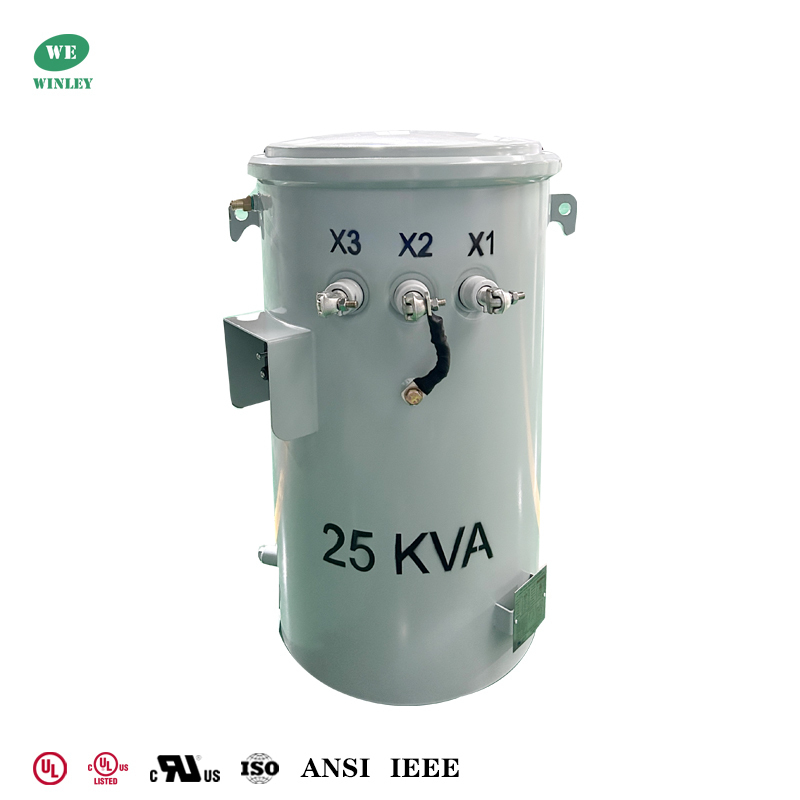

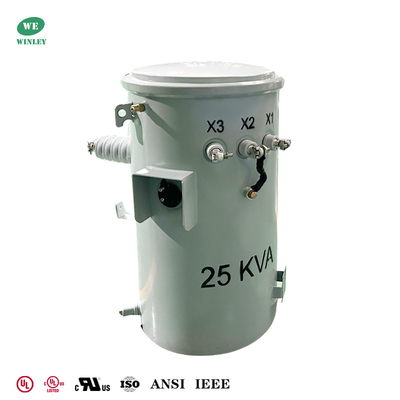

UL Listed 25Kva Single Phase Pole Mounted Overhead Distribution Transformer 7200V to 120V DOE 2016 CSA ANSI IEEE Standards

Brand Name:	WINLEY
Model Number:	D-25/7.2
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Transformer Type:

Pole Mount Distribution Transformer

Capacity:

25 KVA

Primary Voltage:

7200V

Secondary Voltage:

120/240V (L-N-L)

Frequency:

Winding Material:

Copper

Cooling Class:

Standards:

Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Product Description

UL/cUL Listed 25Kva Single Phase Pole Mounted Overhead Distribution Transformer 7200V to 120V DOE 2016 CSA ANSI IEEE Standards

The pole-mounted transformer is a fully sealed cylindrical structure and is installed by pole-mounted suspension. It has the advantages of small size, strong overload capacity, high reliability in continuous operation, simple maintenance, long service life, small infrastructure investment, and reduced low-voltage power supply radius. It can reduce low-voltage line losses by more than 60%. The products are widely used in industrial and agricultural power grid transmission and distribution.

UL Listed 25Kva Single Phase Pole Mounted Overhead Distribution Transformer 7200V to 120V DOE 2016 CSA ANSI IEEE Standards 0

Why choose us

The pole-mounted transformers produced by WINLEY have obtained UL/cUL certification, with rated capacities ranging from 10 kVA to 333 kVA. The products meet or even exceed ANSI, IEEE, CSA, IEC60076 and other standards.
Through optimized electrical design, our products are safe, stable, and efficient, helping you save operating costs
Our products have been exported to North America, Central and South America, Southeast Asia and other markets in large quantities. We have rich experience and can provide comprehensive technical support and services.

UL Listed 25Kva Single Phase Pole Mounted Overhead Distribution Transformer 7200V to 120V DOE 2016 CSA ANSI IEEE Standards 1

Pole Mounted Transformer Main data

Transformer Type:	Overhead Distribution Transformer, Conventional Type
Transformer Configuration:	Liquid Filled Pole Mounted
Phase:	Single Phase
Capacity:	25 KVA
Primary Voltage:	7200V
Secondary Voltage:	120/240V (L-N-L)
Secondary Phasor:	Dual Windings, Single Phase
Frequency:	60 Hz
Temperature Rise:	55°C
Insulation Rating:	Class E Insulation - 120°C, 248°F
Cooling Class:	ONAN; Self-Cooled
Efficiency Standard(s):	Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation):	K-1 (Standard)
Winding Material:	Copper
Ambient Temperature Rating:	40°C
Efficiency:	99.00%

Technical drawings

UL Listed 25Kva Single Phase Pole Mounted Overhead Distribution Transformer 7200V to 120V DOE 2016 CSA ANSI IEEE Standards 2

Pole Mounted Transformer Standard Features

Meet DOE Energy Efficiency Standard or exceeds ANSI/IEEE and CSA standards
Lifting lugs
Arrester mounting pads
Cover-mounted high votage porcelain
Bushing(s) with eyebolt terminal
Low voltage bushings wtih eyebolt terminals
Low voltage enutral grounding strap(not shown)(10-50kVA class B-2 and B-3 only)
ANSI support lugs(hanger brackets) with laser inscribed nameplate on lower bracket
Polyester insulated cover
Self-venting and resealing cover assembly
Centerline core/coil assembly support brackets
Low voltage leads
Oil fill plug with cover ground strap
Tank ground pad
The fllowing additional features are all standard on self protected type CSP units only
Primary protective link (mounted in high voltage bushing)
Surge arrester
Secondary circuit breaker
Secondary breaker operating handle with emergency overload reset and overload signal light

UL Listed 25Kva Single Phase Pole Mounted Overhead Distribution Transformer 7200V to 120V DOE 2016 CSA ANSI IEEE Standards 3

Pole Mounted Transformer Specifications

10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Production process

UL Listed 25Kva Single Phase Pole Mounted Overhead Distribution Transformer 7200V to 120V DOE 2016 CSA ANSI IEEE Standards 4

UL Listed 25Kva Single Phase Pole Mounted Overhead Distribution Transformer 7200V to 120V DOE 2016 CSA ANSI IEEE Standards 5

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
